Keysight (Agilent)
Keysight (Agilent) N9030B-508

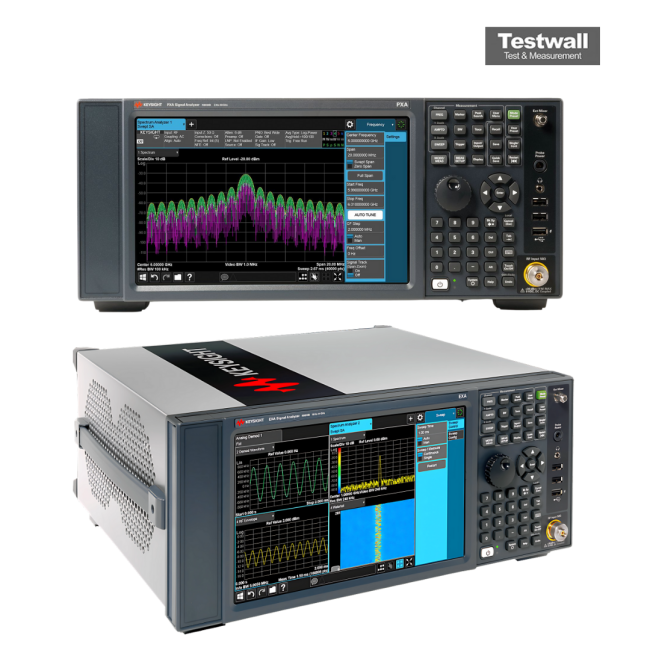

8.4 GHz PXA Multi-touch Signal Analyzer, Type N (f)
3 Hz to 8.4 GHz Frequency Range
508 - Frequency Range Extension to 8.4 GHz Option
Signal Analyzer (PXA Series) Instrument Type
-163 dBm/Hz (nominal, at 1 GHz) Displayed Average Noise Level (DANL)
-130 dBc/Hz at 1 GHz carrier, 10 kHz offset (nominal) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 3 Hz to 8.4 GHz |
| Option | 508 - Frequency Range Extension to 8.4 GHz |
| Instrument Type | Signal Analyzer (PXA Series) |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (nominal, at 1 GHz) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset (nominal) |
| Analysis Bandwidth | Up to 255 MHz (with appropriate options) |
| Third-Order Intercept (TOI) | +20 dBm (nominal, at 1 GHz) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 W) |
| Compatibility | Compatible with Keysight N9030B PXA Signal Analyzer platform |
Keysight Technologies N9030B-508 Options:
- N9030B-508 - P03 - Preamplifier, 100 kHz to 3.6 GHz
- N9030B-508 - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9030B-508 - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9030B-508 - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9030B-508 - EA3 - Electronic attenuator up to 3.6 GHz; 1 dB steps, 0 to 24 dB
- N9030B-508 - B40 - 40 MHz analysis bandwidth
- N9030B-508 - B85 - 85 MHz analysis bandwidth
- N9030B-508 - B1X - 160 MHz analysis bandwidth
- N9030B-508 - B2X - 255 MHz analysis bandwidth (Requires Options EP0 and MPB)
- N9030B-508 - B5X - 510 MHz analysis bandwidth (Requires Options EP0 and MPB)
- N9030B-508 - MPB - Microwave preselector bypass
- N9030B-508 - EP0 - Enhanced phase noise, DDS LO
- N9030B-508 - LNP - Low noise path
- N9030B-508 - EXM - External mixing
- N9030B-508 - FP2 - Fast power (requires Option B40, B85, B1X, B2X, or B5X)
- N9030B-508 - BBA - I/Q baseband inputs, analog
- N9030B-508 - RT1 - Real-time analysis up to maximum available BW, basic detection
- N9030B-508 - RT2 - Real-time analysis up to maximum available BW, optimum detection
- N9030B-508 - RTR - Real-time spectrum recorder and analyzer application
- N9030B-508 - RTS - Real-time I/Q data streaming
- N9030B-508 - FT1 - Frequency mask trigger, basic detection
- N9030B-508 - FT2 - Frequency mask trigger, optimum detection
- N9030B-508 - EMC - Basic EMI precompliance
- N9030B-508 - EDP - Enhanced display package (spectrogram, trace zoom, and zone span)
- N9030B-508 - ESC - External source control for Keysight EXG, MXG, and PSG signal generators
- N9030B-508 - SSD - Additional removable solid-state drive
- N9030B-508 - SF1 - Exclude launch program (security feature)
- N9030B-508 - SF2 - Prohibit saving results (security feature)
- N9030B-508 - CR3 - Second IF output
- N9030B-508 - CRP - Arbitrary IF out (10 to 75 MHz in 500 kHz steps)
- N9030B-508 - YAV - Y-axis video out
- N9030B-508 - ALV - Aux log video out
- N9030B-508 - UK6 - Commercial calibration certificate with test data
- N9030B-508 - AMG - Keysight Calibration + Uncertainties + Guardbanding (accredited cal)
- N9030B-508 - A6J - ANSI Z540-1-1994 Calibration
| Model | N9030B-508 |
|---|
The Keysight (Aglient) N9030B‑508 offers high‑precision RF spectrum analysis up to 8.4 GHz with optional real‑time bandwidth of 1 GHz, delivering excellent DANL for detecting low‑level signals in demanding 5G NR, radar, and military communications applications.
This advanced analyzer supports key measurements such as EVM, ACLR, ACP and more, featuring seamless integration with Keysight PathWave tools and versatile interfaces.
Testwall can supply the used Keysight (Aglient) N9030B‑508, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Aglient) N9030B‑508.
