Keysight (Agilent) N9344C 20 GHz Handheld Spectrum Analyzer
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 20 GHz |
| Displayed Average Noise Level (DANL) | -161 dBm/Hz (with preamplifier enabled) |
| Resolution Bandwidth (RBW) | 300 Hz to 1 MHz (in 1-3-10 steps) |
| Phase Noise | -98 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Amplitude Accuracy | ±1.5 dB |
| Dynamic Range | Up to 95 dB |
| Input Impedance | 50 Ohm |
| Display | 6.5-inch color TFT LCD touchscreen, 640 x 480 resolution |
| Battery Life | Up to 4 hours of operation with standard battery pack |
| Weight | Approximately 3.1 kg (6.8 lbs) with battery |
Keysight Technologies N9344C 20 GHz Handheld Spectrum Analyzer Options:
- N9344C - TG7 - Tracking Generator (provides an RF source for scalar network analysis)
- N9344C - SIM - Spectrum Monitor (analyzes stability of a signal over time, monitors intermittent events)
- N9344C - PA7 - High-sensitivity Measurement with Pre-amplifier (for N9342C)
- N9344C - P13 - High-sensitivity Measurement with Pre-amplifier (for N9343C)
- N9344C - P20 - High-sensitivity Measurement with Pre-amplifier (for N9344C)
- N9344C - PWM - High Accuracy Power Measurement (supports Agilent U2000 series power sensors)
- N9344C - SEC - User Data Sanitation (allows user to erase all customized files and data)
- N9344C - TPN - Task Planner (integrates different measurements for test automation)
- N9344C - GPS - Built-in GPS with built-in GPS antenna
- N9344C - BCG - External Battery Charger
- N9344C - 1DC - Automotive DC Adapter
- N9344C - 900 - AC Power Cord, BS 1363/A (United Kingdom, Hong Kong, Singapore, Malaysia)
- N9344C - 901 - AC Power Cord, AS 3112:2000 (Australia, New Zealand)
- N9344C - 902 - AC Power Cord, IEC 83 C4 (Continental Europe, Korea, Indonesia, Italy, Russia)
- N9344C - 903 - AC Power Cord, CNS 10917-2/NEMA 5-15P (United States, Canada, Taiwan, Mexico)
- N9344C - 906 - AC Power Cord, SEV 1011 (Switzerland)
- N9344C - 917 - AC Power Cord, SABS 164-1 (South Africa, India)
- N9344C - 918 - AC Power Cord, JIS C8303 (Japan)
- N9344C - 919 - AC Power Cord, SI 32 (Israel)
- N9344C - 922 - AC Power Cord, GB 1002 (China)
| Model | N9344C |
|---|

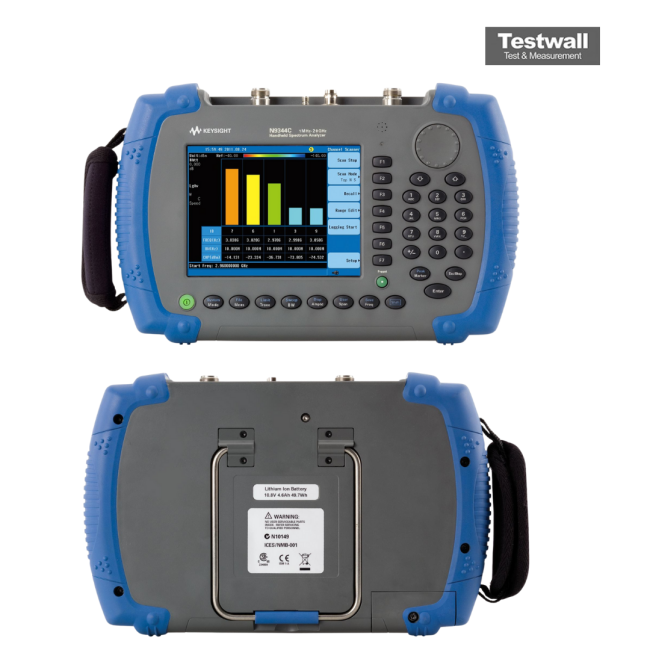

The Keysight (Agilent) N9344C is a 20 GHz handheld spectrum analyzer compliant with MIL PRF 28800 Class 2. Built for rugged environments, it features a fanless design, superior day/night visibility, and benchtop-level measurement performance in a portable format.
Ideal for field testing, it automates routine tasks with a task planner to reduce setup time by 95%, ensuring accuracy and efficiency on the go.
Testwall can supply the used Keysight (Agilent) N9344C 20 GHz Handheld Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9344C 20 GHz Handheld Spectrum Analyzer.
