Keysight (Agilent) N9923A-106
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 6 GHz |
| Option | 106 - Frequency Extension to 6 GHz |
| Instrument Type | FieldFox RF Vector Network Analyzer |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 110 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Measurement Modes | VNA, CAT, Power Meter, Spectrum Analyzer, Vector Voltmeter |
| Display | 6.5-inch daylight-readable color LCD display |
| Battery Life | Approximately 3 hours with standard battery pack |
| Operating Temperature | -10°C to +55°C |
Keysight (Agilent) N9923A-106 Options:
- N9923A-106 - 104 - 4 GHz RF vector network analyzer, transmission/reflection: Includes S11 and S21, mag and phase, one-port and enhanced response calibration, 2 MHz to 4 GHz
- N9923A-106 - 106 - 6 GHz RF vector network analyzer, transmission/reflection: Includes S11 and S21, mag and phase, one-port and enhanced response calibration, 2 MHz to 6 GHz
- N9923A-106 - 112 - QuickCal: Adds one-port QuickCal and two-port QuickCal (two-port QuickCal only if option 122 is ordered)
- N9923A-106 - 122 - Full two-port S-parameters: Adds S12, S22, and full two-port calibration
- N9923A-106 - 302 - External USB power sensor support: Enables USB port to be used for power measurements. Power sensor not included
- N9923A-106 - 305 - Cable and antenna analyzer: Adds Cable and Antenna Test (CAT) mode, which allows for DTF measurements. Measurements include DTF (dB), RL & DTF, RL (dB), VSWR, DTF (VSWR), Cable loss (1-port), Insertion loss (2-port), and DTF (linear)
- N9923A-106 - 308 - Vector voltmeter: Provides 1-port cable trimming and 2-port transmission measurements
| Model | N9923A-106 |
|---|

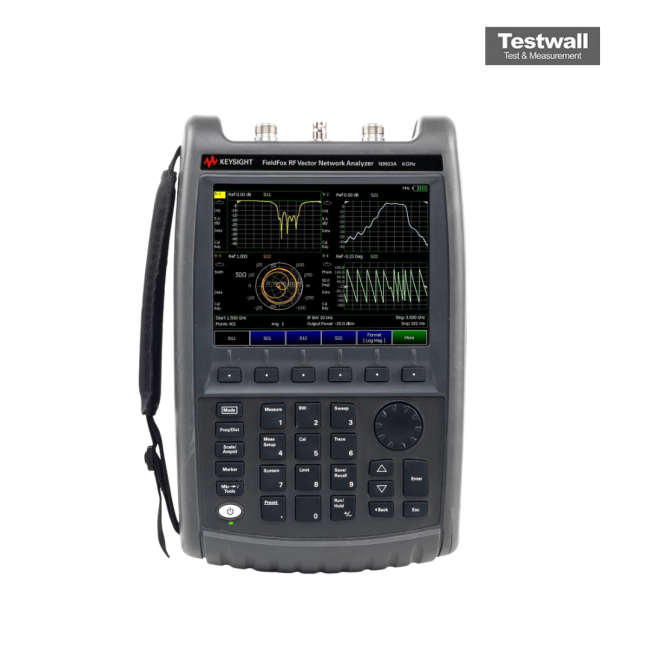

The Keysight (Agilent) N9923A-106 FieldFox is a battery-powered RF analyzer covering 30 kHz to 6 GHz, combining a vector network analyzer, spectrum analyzer, and power meter. It features MIL-grade ruggedness with an IP53 rating, a touchscreen interface, and USB/LAN connectivity.
Ideal for field engineers, it supports cable and antenna testing with CalReady and QuickCal for efficient measurements and offers up to 4 hours of operation on a single charge.
Testwall can supply the used Keysight (Agilent) N9923A-106, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9923A-106.
