Keysight (Agilent) N9936A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.5 GHz |
| Display | 6.5-inch daylight-readable color LCD touchscreen |
| Dynamic Range | Up to 108 dB |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (with preamplifier enabled) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Battery Life | Approximately 4 hours with standard battery pack |
| Weight | Approximately 3.1 kg (6.8 lbs) |
| Input Impedance | 50 Ohms |
| Operating Temperature | -10°C to +55°C |
Keysight (Agilent) N9936A Options:
- N9936A - 233 - Spectrum Analyzer (on Combination Analyzers)
- N9936A - 010 - VNA Time Domain
- N9936A - 030 - Remote Control Capability (iOS)
- N9936A - 209 - Extended Range Transmission Analysis (ERTA)
- N9936A - 212 - Mixed-Mode S-Parameters
- N9936A - 215 - TDR Cable Measurements
- N9936A - 235 - Preamplifier
- N9936A - 236 - Interference Analyzer and Spectrogram
- N9936A - 302 - External USB Power Sensor Support
- N9936A - 307 - Built-In GPS Receiver
- N9936A - 308 - Vector Voltmeter (VVM)
- N9936A - 309 - DC Bias Variable-Voltage Source
- N9936A - 310 - Built-in Power Meter
- N9936A - 312 - Channel Scanner
- N9936A - 320 - Reflection Measurements (RL, VSWR)
- N9936A - 330 - Pulse Measurements
- N9936A - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9936A - 351 - I/Q Analyzer (IQA)
- N9936A - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9936A - 356 - Noise Figure (NF)
- N9936A - 370 - Over-the-Air (OTA) LTE FDD
- N9936A - 377 - Over-the-Air (OTA) 5GTF
- N9936A - 208 - USB Power Sensor Measurements versus Frequency
- N9936A - 238 - Spectrum Analyzer Time Gating
| Model | N9936A |
|---|

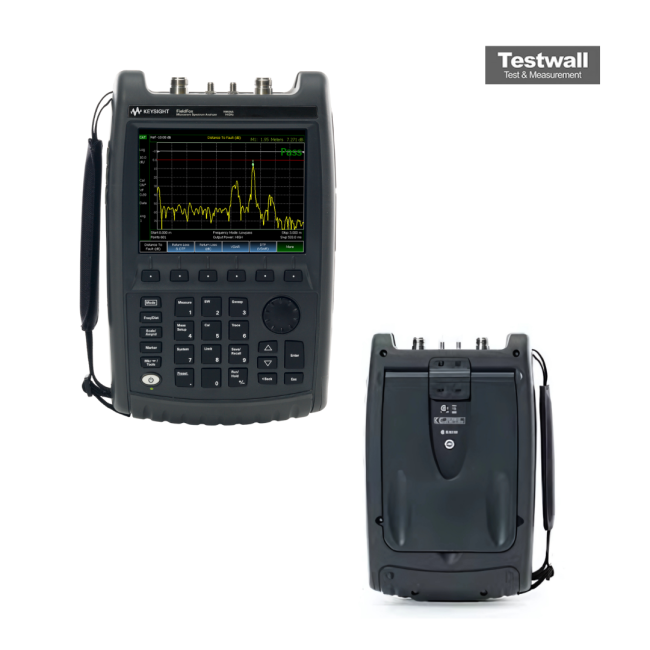

The Keysight (Agilent) N9936A FieldFox is a highly durable portable analyzer, offering precision with ±0.5 dB spectrum analysis accuracy without warm-up. It features 10 MHz gap-free real-time bandwidth, GPS/GNSS geolocation, and I/Q data capture. With its compact 3.0 kg design, this analyzer is tailored for field work in tough environments.
It supports 5G TF, LTE OTA testing, radar pulse profiling, and RF signal analysis, ensuring versatile functionality in a single lightweight unit.
Testwall can supply the used Keysight (Agilent) N9936A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9936A.
