Keysight (Agilent) N9962A
50 GHz FieldFox Microwave Spectrum Analyzer, 2.4 mm (m)
100 kHz to 32 GHz Frequency Range
-163 dBm/Hz (typical, with preamp enabled) Displayed Average Noise Level (DANL)
-104 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) Phase Noise
Up to 106 dB Dynamic Range
1 Hz to 3 MHz Resolution Bandwidth (RBW)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 32 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm/Hz (typical, with preamp enabled) |
| Phase Noise | -104 dBc/Hz at 10 kHz offset (1 GHz carrier, typical) |
| Dynamic Range | Up to 106 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Amplitude Accuracy | ±0.5 dB (total amplitude accuracy, typical) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Display | 10.1-inch color touchscreen display |
| Battery Operation | Supports battery operation for portable field use (up to approximately 2 hours) |
Keysight (Agilent) N9962A Options:
- N9962A - 030 - Remote Control Capability (iOS device control via FieldFox app)
- N9962A - 209 - Extended Range Transmission Analysis (ERTA)
- N9962A - 208 - USB Power Sensor Measurements versus Frequency (Frequency Offset using Power Sensor)
- N9962A - 233 - Spectrum Analyzer
- N9962A - 235 - Preamplifier
- N9962A - 236 - Interference Analyzer and Spectrogram
- N9962A - 238 - Spectrum Analyzer Time Gating
- N9962A - 302 - External USB Power Sensor Support
- N9962A - 307 - Built-In GPS Receiver
- N9962A - 309 - DC Bias Variable-Voltage Source
- N9962A - 310 - Built-in Power Meter
- N9962A - 312 - Channel Scanner
- N9962A - 320 - Reflection Measurements (RL, VSWR) for SA only models
- N9962A - 330 - Pulse Measurements
- N9962A - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9962A - 355 - AM/FM Analog Demodulation, Tune and Listen
| Model | N9962A |
|---|

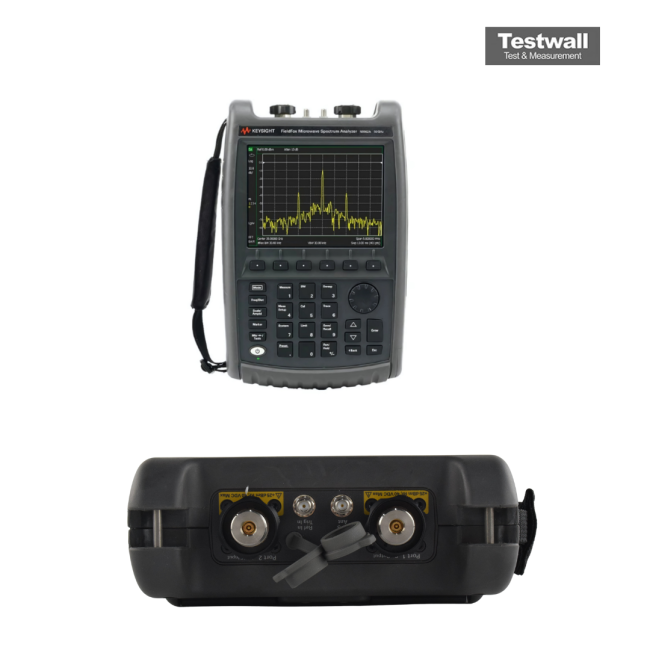

The Keysight (Agilent) N9962A FieldFox is a compact, rugged handheld analyzer offering ±0.5 dB accuracy, real-time 10 MHz bandwidth, and geolocation via GPS/GNSS. It supports spectrum analysis, radar profiling, and 5G TF/LTE measurements.
With I/Q capture for RF signal analysis and a lightweight 3.2 kg design, the N9962A suits field maintenance and troubleshooting with ease. Includes essential accessories for portability and operation.
Testwall can supply the used Keysight (Agilent) N9962A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N9962A.
