Keysight (Agilent) PA2201A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1 MHz |
| Impedance Measurement Range | 1 mΩ to 100 MΩ |
| Basic Accuracy | 0.05% |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS |
| DC Bias Voltage | 0 to ±2 V |
| Measurement Parameters | |Z|, |Y|, C, L, R, X, G, B, D, Q, θ, Vac, Iac, Vdc, Idc |
| Interface | USB, LAN (LXI Core), GPIB (optional) |
| Display | 6.5-inch color LCD touchscreen |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) PA2201A Options:
- PA2203A - PA2203A - 4-Channel Power Analyzer for 4 power channels (3-phase measurements and analysis)
- PA2201A - 5067-6088 - Removable connector for direct current input (Keysight part number 5067-6088)
- PA2201A - N2780B - Current probe supported by the power analyzer
- PA2201A - N2781B - Current probe supported by the power analyzer
- PA2201A - N2782B - Current probe supported by the power analyzer
- PA2201A - N2783B - Current probe supported by the power analyzer
- PA2201A - 11488 - Current probe supported by the power analyzer
| Model | PA2201A |
|---|

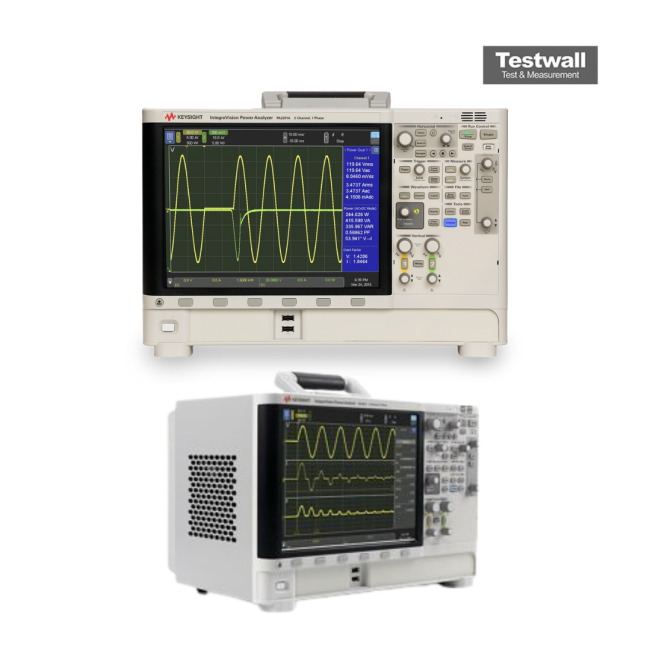

The Keysight (Agilent) PA2201A IntegraVision power analyzer offers 0.05% basic accuracy and 16-bit resolution, allowing precise AC/DC power measurements, efficiency evaluations, and frequency domain analysis. It features isolated inputs, 12.1” touchscreen, 5 MSa/s digitizing speed, and 2.5 MHz bandwidth for dynamic power profiling.
Ideal for visualizing in-rush currents, power transients, and response to stimulus, this power analyzer supports advanced R&D needs in real-time with time and frequency domain analysis capabilities.
Testwall can supply the used Keysight (Agilent) PA2201A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) PA2201A.
