Keysight (Agilent)
Keysight (Agilent) R11645A
Verification Kit, WR-28
75 GHz to 110 GHz Frequency Range
W-Band (WR-10) Waveguide Band
WR-10 Waveguide Flange Connector Type
Mixer/Converter for Vector Network Analyzer (VNA) Frequency Extension Application
Keysight PNA/PNA-X Series Network Analyzers Compatible Instrument
| Attribute | Value |
|---|---|
| Frequency Range | 75 GHz to 110 GHz |
| Waveguide Band | W-Band (WR-10) |
| Connector Type | WR-10 Waveguide Flange |
| Application | Mixer/Converter for Vector Network Analyzer (VNA) Frequency Extension |
| Compatible Instrument | Keysight PNA/PNA-X Series Network Analyzers |
| Measurement Capability | S-parameter measurements in the W-Band frequency range |
| IF Frequency Range | Up to 20 GHz |
| LO Input Frequency | Derived from VNA internal source via frequency multiplier |
| Dynamic Range | Greater than 90 dB typical |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) R11645A Options:
- R11645A - R11645AR01 - 20 dB attenuator with data
- R11645A - R11645AR02 - 50 dB attenuator with data
- R11645A - R11645AR03 - Match line with data
- R11645A - R11645AR04 - Mismatch line with data
| Model | R11645A |
|---|

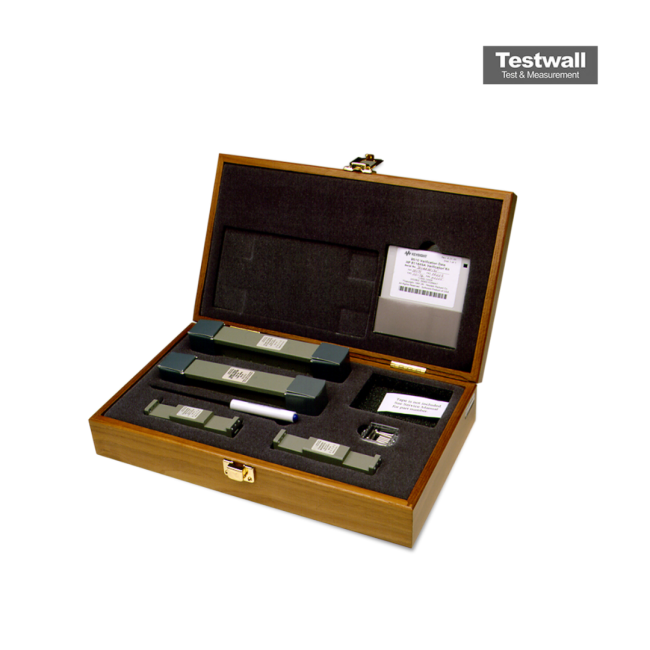

The Keysight (Agilent) R11645A Verification Kit features a W-28 connector and supports a frequency range from 26.5 to 40 GHz, ideal for validating network analyzer performance.
It includes a standard waveguide section, mismatch, and 20 dB and 50 dB attenuators, with all components traceable to NIST standards.
Testwall can supply the used Keysight (Agilent) R11645A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) R11645A.
