Keysight (Agilent) S9100A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 54 GHz |
| Form Factor | Modular, PXIe-based Vector Network Analyzer |
| Number of Ports | Up to 4 ports |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -90 dBm to +10 dBm |
| Measurement Speed | Up to 100 µs per point |
| Interface/Bus | PXIe (PCI Express) |
| Trace Noise | <0.004 dB RMS |
| System Chassis Compatibility | PXIe chassis (compatible with standard PXIe systems) |
| Software Support | Keysight PathWave VNA software, compatible with Windows 10 |
Keysight (Agilent) S9100A Options:
- M9410A - B12 - 1.2 GHz Bandwidth option (configured in S9100A)
- M9410A - M05 - 512 MSa memory option (configured in S9100A)
- M9410A - 1EA - Extended output power up to +20 dBm (380 to 6000 MHz)
- M9037A - EC1 - PXIe High Performance Embedded Controller
- M9024A - SM1 - PXIe High Performance System Module
| Model | S9100A |
|---|

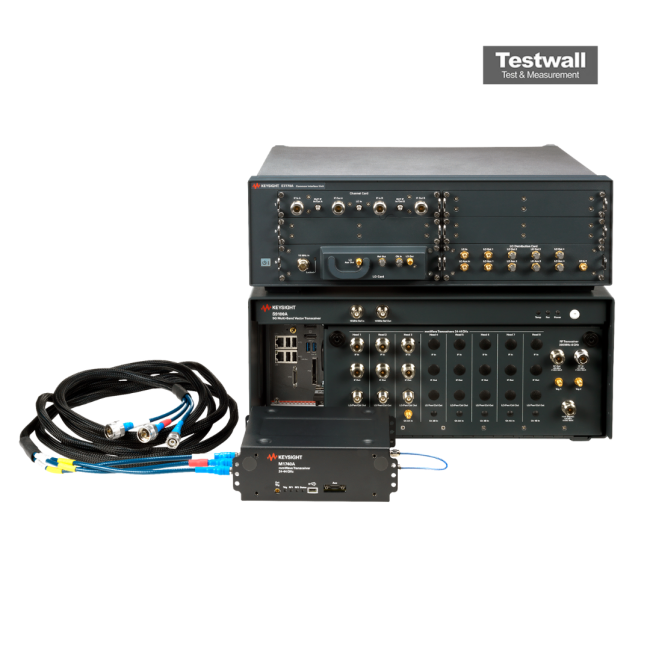

The Keysight (Agilent) S9100A 5G Multi-Band Vector Transceiver delivers high-performance RF signal generation and analysis across FR1 (0.38–6 GHz) and FR2 (24–44 GHz) bands with 1.2 GHz bandwidth, ensuring optimal EVM and ACLR.
Ideal for high-volume 5G NR equipment testing, it simplifies OTA setups with mmWave remote heads, supported by PathWave™ software and automation tools like KS8400A.
Testwall can supply the used Keysight (Agilent) S9100A 5G Multi-Band Vector Transceiver, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) S9100A 5G Multi-Band Vector Transceiver.
