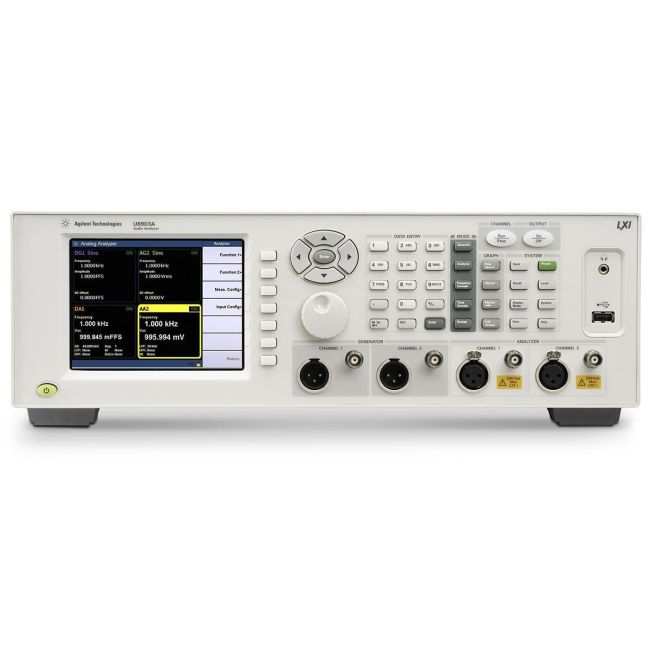

Keysight (Agilent) U8903A-200
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 100 kHz |
| Dynamic Range | 120 dB |
| Total Harmonic Distortion (THD) Measurement Range | -100 dBc to 0 dBc |
| Input Voltage Range | Up to 200 Vrms |
| Input Channels | 2 analog input channels |
| Residual THD+N | -100 dB (0.001%) |
| Analog Output Voltage | Up to 10 Vrms balanced |
| Interface | USB, LAN (LXI Core 2011), GPIB (optional) |
| Display | 4.3-inch color LCD display |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) U8903A-200 Options:
- U8903A-200 - 200 - Standard option with two channels of analog audio generator and analyzer
- U8903A-200 - 113 - Expands the audio analyzer with the AES3, SPDIF, and DSI digital audio interfaces
- U8903A-200 - 114 - Expands the audio analyzer with the AES3 and SPDIF digital audio interfaces
- U8903A-200 - 115 - Expands the audio analyzer with the DSI digital audio interface
- U8903A-200 - 908 - Rackmount kit for standard 19-inch rack
| Model | U8903A-200 |
|---|
The Keysight (Agilent) U8903A-200 provides precise dual-channel audio analysis with a wide frequency range of 10 Hz to 100 kHz, and extremely low THD+N down to -120 dB. It integrates analog and digital I/O ports for versatile connectivity and includes a graphical display for waveform and spectrum visualization.
Suitable for testing speakers, amplifiers, and audio codecs, the U8903A-200 supports automation through its programmable interface.
Testwall can supply the used Keysight (Agilent) U8903A-200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U8903A-200.
