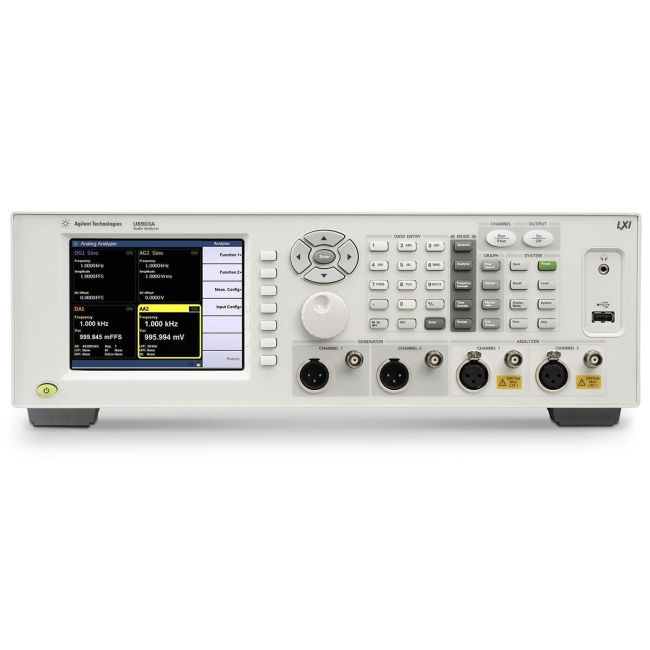

Keysight (Agilent) U8903A
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 100 kHz |
| Dynamic Range | 120 dB |
| THD+N Residual | -108 dBV (0.00040%) |
| Analyzer Input Voltage Range | 100 mVrms to 200 Vrms |
| Generator Output Voltage Range | 100 mVrms to 6 Vrms |
| Frequency Accuracy | ±10 ppm |
| Channel Configuration | 2-channel (stereo) audio analyzer |
| Input Impedance | 100 kΩ balanced / unbalanced |
| Interface | USB, LAN (LXI Core 2011), GPIB (optional) |
| Display | 4.3-inch color LCD display |
Keysight (Agilent) U8903A Options:
- U8903A - 200 - Standard option with two channels of analog audio generator and analyzer
- U8903A - 113 - Expands the audio analyzer with the AES3, SPDIF, and DSI digital audio interfaces
- U8903A - 114 - Expands the audio analyzer with the AES3 and SPDIF digital audio interfaces
- U8903A - 115 - Expands the audio analyzer with the DSI digital audio interface
- U8903A - 908 - Rackmount kit for standard 19-inch rack mounting
| Model | U8903A |
|---|
The Keysight (Agilent) U8903A Audio Analyzer integrates a distortion meter, SINAD meter, frequency counter, AC/DC voltmeters, and an FFT analyzer with a low-distortion audio source. It offers high accuracy and versatility, making it ideal for bench or system testing applications.
It features 5ppm frequency accuracy, ±1% amplitude accuracy, -101dB residual distortion, and supports generator/analyzer modes with real-time graphical output and full automation interfaces.
Testwall can supply the used Keysight (Agilent) U8903A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U8903A.
