Kikusui

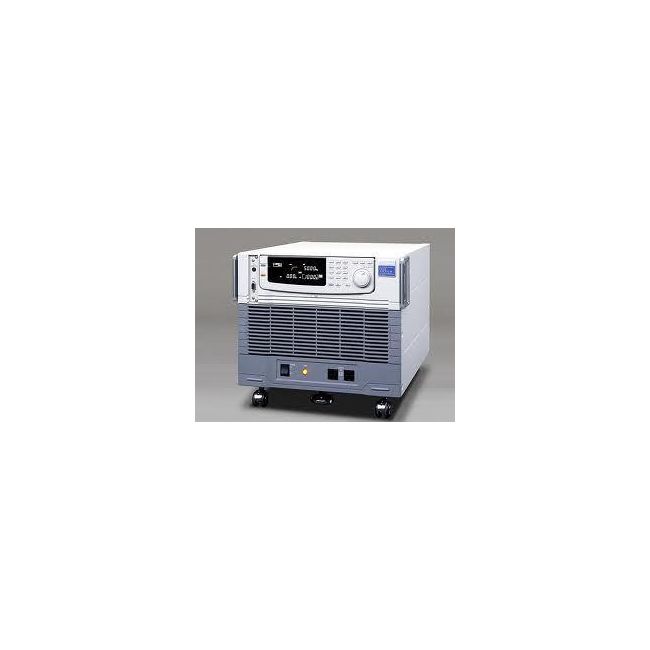

Kikusui PCR1000LA
AC Power Source, 1 kVA, 200V, 10A, 1 Phase
1000 VA Output Capacity
0 – 150 V / 0 – 300 V (switchable) Output Voltage Range
45 – 999.9 Hz Output Frequency Range
13.3 A (150 V range) / 6.7 A (300 V range) Output Current (Max)
Single-phase 100 – 240 V AC Input Voltage
| Attribute | Value |
|---|---|
| Output Capacity | 1000 VA |
| Output Voltage Range | 0 – 150 V / 0 – 300 V (switchable) |
| Output Frequency Range | 45 – 999.9 Hz |
| Output Current (Max) | 13.3 A (150 V range) / 6.7 A (300 V range) |
| Input Voltage | Single-phase 100 – 240 V AC |
| Input Frequency | 47 – 63 Hz |
| Voltage Accuracy | ±(0.5% of set value + 0.5 V) |
| Frequency Accuracy | ±0.1% of set value |
| Waveform | Sine wave |
| Interface / Control | RS-232C, USB (standard); GP-IB (optional) |
Kikusui PCR1000LA Options:
- PCR1000LA - RC03-PCR-LA - Remote Controller (simple type) - enables power line abnormality simulations, voltage/frequency setting and display
- PCR1000LA - RC04-PCR-LA - Remote Controller (multifunctional type) - enables power line simulation, sequence operation, harmonics current analysis, special waveform output, output impedance setting, power factor/VA/peak hold current measurement, output on/off phase setting, AC+DC mode, memory function expansion, regulation adjustment
- PCR1000LA - IB03-PCR-LA - GPIB Interface Card
- PCR1000LA - EX03-PCR-LA - Analog Interface Card (for external signal input / power amplifier function)
- PCR1000LA - PD03M-PCR-LA - Parallel Operation Driver (Master)
- PCR1000LA - PD03S-PCR-LA - Parallel Operation Driver (Slave)
- PCR1000LA - 3P03-PCR-LA - Three-Phase Output Driver
- PCR1000LA - 2P03-PCR-LA - Single-Phase, Three-Wire Output Driver
- PCR1000LA - SD04-PCR-L(E) - Quick Wave Sequencer arbitrary waveform creation software
- PCR1000LA - SD003-PCR-LA - Quick Immunity Sequencer Power Line Disturbance Immunity Testing Software
- PCR1000LA - KRB400 - Rack Mount Bracket for metric-type racks (JIS)
- PCR1000LA - KRB8 - Rack Mount Bracket for inch-type racks (EIA)
| Model | PCR1000LA |
|---|
Kikusui PCR1000LA AC Power Source The Kikusui PCR1000LA is an advanced, multifunctional AC power source which are safe and highly reliable, as well as easy to use. Built-in measurement functions allow users to measure voltage, cur, appa power, effective power, power factor and harmonics cur. Functions such as power line abnormality simulations and arbitrary waveform generation give reproducability and reliability of the data to evaluate a variety of real world conditions. The Kikusui PCR1000LA are equipped with an RS-232C interface and dedicated remote control interface allowing users to access all functions from a PC. With its advanced performance and flexible configuration, the Kikusui PCR1000LA can be applied to testing of electrical apparatus, machinery, power supply environment testing, immunity testing and more. Multiple PCR1000LA AC power sources can be connected in parallel to increase overall capacity or to provide three phase operation. The Kikusui PCR1000LA performs extremely well in applications involving repair, inspection, calibration and more. Specifications of the Kikusui PCR1000LA AC Power Source includes: See Datasheet for Full Specifications
