Kikusui

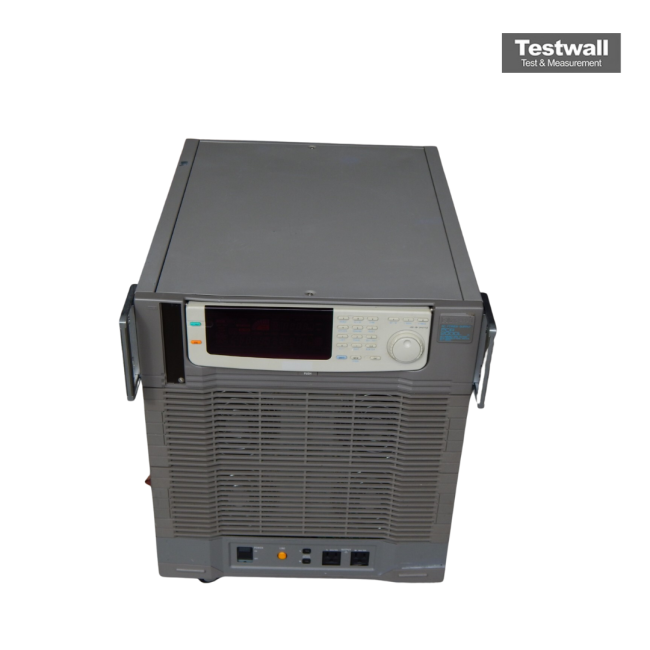

Kikusui PCR2000L
2000VA Voltage/Frequency Converter
2000 VA Output Capacity
0 – 310 V AC (Variable) Output Voltage Range
45 – 999.9 Hz Output Frequency Range
20 A (100 V range) / 10 A (200 V range) Output Current (Max)
Single Phase 100 – 240 V AC Input Voltage
| Attribute | Value |
|---|---|
| Output Capacity | 2000 VA |
| Output Voltage Range | 0 – 310 V AC (Variable) |
| Output Frequency Range | 45 – 999.9 Hz |
| Output Current (Max) | 20 A (100 V range) / 10 A (200 V range) |
| Input Voltage | Single Phase 100 – 240 V AC |
| Input Frequency | 47 – 63 Hz |
| Voltage Setting Resolution | 0.1 V |
| Frequency Setting Resolution | 0.1 Hz |
| Output Waveform | Sine Wave |
| Dimensions (W x H x D) | 215 mm x 132 mm x 430 mm |
| Model | PCR2000L |
|---|
Power Supply AC, DC, Harmonics, Ramps, Test Sequences, Harmonic Analysis, Programmable, 2-300VAC, 1Hz to 1kHz, I max 5 to 40A, GPIB, AC 2000VA.
