Kikusui

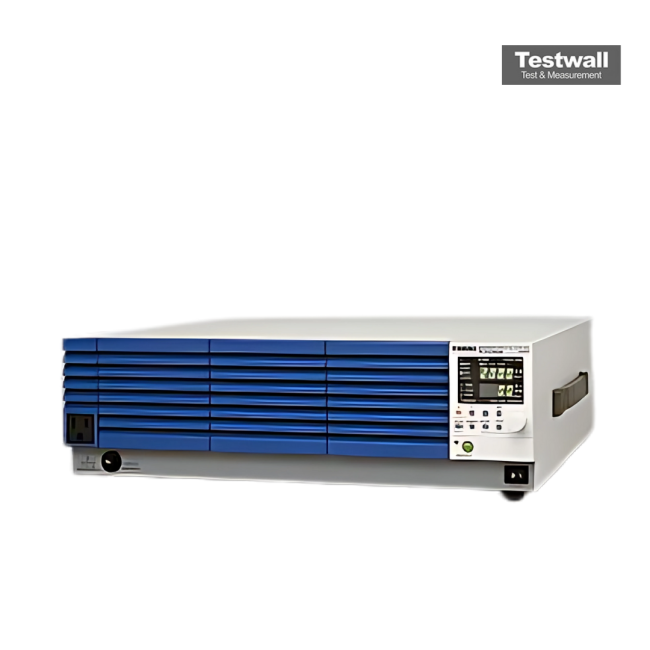

Kikusui PCR2000M
2000VA Voltage/Frequency Converter
2000 VA Output Capacity
0 – 150 V / 0 – 300 V (switchable) Output Voltage Range
45 Hz – 999.9 Hz Output Frequency Range
13.3 A (150 V range) / 6.7 A (300 V range) Output Current (Max)
Single-phase 200 – 240 VAC Input Voltage
| Attribute | Value |
|---|---|
| Output Capacity | 2000 VA |
| Output Voltage Range | 0 – 150 V / 0 – 300 V (switchable) |
| Output Frequency Range | 45 Hz – 999.9 Hz |
| Output Current (Max) | 13.3 A (150 V range) / 6.7 A (300 V range) |
| Input Voltage | Single-phase 200 – 240 VAC |
| Voltage Accuracy | ±(0.5% of set + 0.5% of rating) |
| Frequency Accuracy | ±0.1% of setting |
| Total Harmonic Distortion (THD) | ≤ 0.5% (resistive load, 50/60 Hz) |
| Waveform | Sine wave |
| Interface / Connectivity | RS-232C, USB (standard); GPIB (optional) |
Kikusui PCR2000M 2000VA Voltage/Frequency Converter Options:
- PCR2000M - EX04-PCR-M - Analog Interface Board
- PCR2000M - IB21 - Gpib Option
- PCR2000M - UB21 - Usb Option
| Model | PCR2000M |
|---|
The Kikusui PCR2000M is a 2000VA voltage/frequency converter delivering 1V–270V AC and 1.4V–380V DC outputs with high efficiency (~70%) via a PWM inverter. It supports peak currents up to 3x rated RMS and includes measurement, memory, protection, and versatile interface options.
This compact AC power supply functions like an AVR or variable autotransformer and can even output DC. An optional EX04-PCR-M interface allows it to boost arbitrary signal generators.
Testwall can supply the used Kikusui PCR2000M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kikusui PCR2000M.
