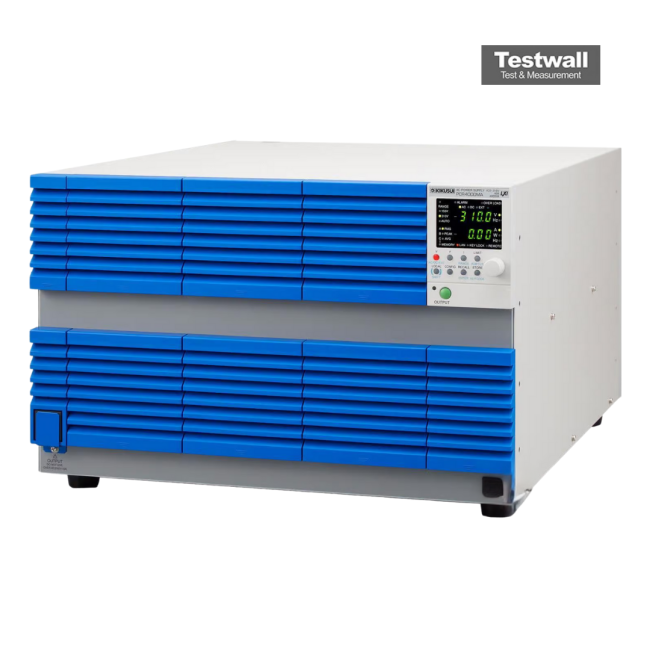

Kikusui PCR4000M
| Attribute | Value |
|---|---|
| Output Power | 4000 VA |
| Output Voltage Range | 0 – 310 V AC (1-phase mode), 0 – 220 V AC (3-phase mode) |
| Output Frequency Range | 45 – 999.9 Hz |
| Output Current (Max) | 28 A RMS (1-phase mode) |
| Phase Configuration | Single-phase / Three-phase switchable |
| Input Voltage | 200 V AC / 208 V AC / 220 V AC (3-phase, 50/60 Hz) |
| Total Harmonic Distortion (THD) | ≤ 0.5% (resistive load, at 50/60 Hz) |
| Waveform | Sine wave |
| Dimensions (W × H × D) | 430 mm × 177 mm × 600 mm (4U rack mount) |
| Weight | Approximately 45 kg |
Kikusui PCR4000M 4KVA Voltage/frequency Converter Options:
- PCR4000M - EX04-PCR-M - Analog Interface Board
- PCR4000M - IB21 - Gpib Interface
- PCR4000M - US21 - Usb Interface
- PCR4000M - WAVY - Sequence Creation Software
| Model | PCR4000M |
|---|
The Kikusui PCR4000M is a 4KVA voltage/frequency converter offering precise AC output from 1V to 270V and DC output from 1.4V to 380V. It delivers up to 4000VA output power and supports peak currents up to three times the rated RMS current. Integrated measurement functions ensure versatile and accurate operation in laboratory and production environments.
This converter is ideal for applications requiring both AC and DC voltage sources with adjustable frequency and real-time measurement features.
Testwall can supply the used Kikusui PCR4000M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kikusui PCR4000M.
