Kikusui

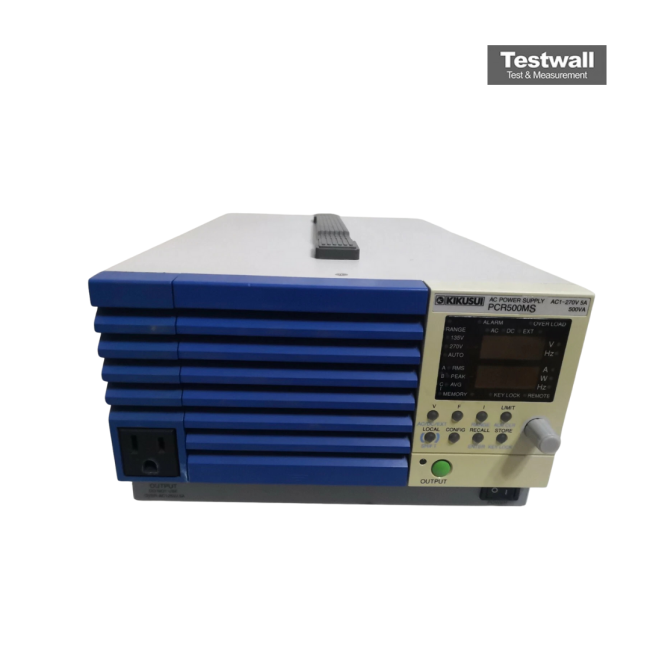

Kikusui PCR500M
Single Phase 500VA AC Power Supply
500 VA Output Power
0 – 150 V / 0 – 300 V (switchable) Output Voltage Range
45 – 999.9 Hz Output Frequency Range
4.2 A (150 V range) / 2.1 A (300 V range) Output Current (Max)
12.6 A (150 V range) / 6.3 A (300 V range) Peak Current Output
| Attribute | Value |
|---|---|
| Output Power | 500 VA |
| Output Voltage Range | 0 – 150 V / 0 – 300 V (switchable) |
| Output Frequency Range | 45 – 999.9 Hz |
| Output Current (Max) | 4.2 A (150 V range) / 2.1 A (300 V range) |
| Peak Current Output | 12.6 A (150 V range) / 6.3 A (300 V range) |
| Input Voltage | Single-phase 100 – 240 V AC |
| Voltage Accuracy | ±(0.5% of setting + 0.5% of full scale) |
| Frequency Accuracy | ±0.01% of setting |
| Waveform | Sine wave |
| Interface / Control | USB, RS-232C; optional GPIB available |
Kikusui PCR500M Single Phase 500VA AC Power Supply Options:
- PCR500M - EX04-PCR-M - Analogue Interface Board
- PCR500M - IB21 - Gpib Option
- PCR500M - UB21 - Usb Option
| Model | PCR500M |
|---|
The Kikusui PCR500M is a compact single-phase 500VA AC power supply with output ranges of 1V–270V AC and 1.4V–380V DC, delivering up to 500W. It features peak current capability of three times the rated RMS, built-in measurement functions, and a high-efficiency PWM inverter-based design.
Ideal for both AC and DC testing, it includes memory and protection functions and supports optional analog interface for signal boosting, making it highly versatile.
Testwall can supply the used Kikusui PCR500M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kikusui PCR500M.
