Kikusui PCZ1000A
AC Electronic Load, 1000W, 10A, 280V
1 Hz to 10 MHz Frequency Range
1 mΩ to 100 MΩ Impedance Measurement Range
±0.1% Basic Accuracy
|Z|, |Y|, θ, R, X, G, B, Cs, Cp, Ls, Lp, Rs, Rp, D, Q, Δ% Measurement Parameters
10 mV to 1 Vrms Test Signal Level (Voltage)
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 10 MHz |
| Impedance Measurement Range | 1 mΩ to 100 MΩ |
| Basic Accuracy | ±0.1% |
| Measurement Parameters | |Z|, |Y|, θ, R, X, G, B, Cs, Cp, Ls, Lp, Rs, Rp, D, Q, Δ% |
| Test Signal Level (Voltage) | 10 mV to 1 Vrms |
| Test Signal Level (Current) | 1 mA to 100 mArms |
| DC Bias Voltage | 0 to ±40 V |
| DC Bias Current | 0 to ±100 mA |
| Interface / Connectivity | USB, LAN (LXI), GP-IB (optional) |
| Display | 7-inch color TFT LCD touchscreen |
Kikusui PCZ1000A Options:
- PCZ1000A - KRB3 - Rack mount bracket (Inch size, EIA standard compatible rack)
- PCZ1000A - KRB150 - Rack mount bracket (Metric size, JIS standard compatible rack)
- PCZ1000A - PC01 - Parallel operation cable
| Model | PCZ1000A |
|---|

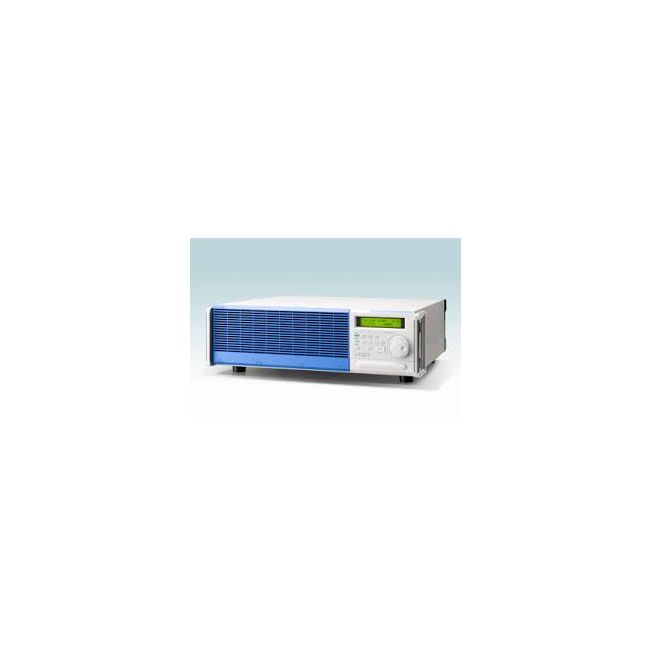

KIKUSUI PCZ1000A AC Electronic Load The Kikusui PCZ1000A AC Electronic Load enables you to perform load simulations for various inverters and transformers, such as ones for fuel cell power generation, photovoltaic (PV) generation and uninteruptible power supply testing. Supporting both single phase and three phase operation, and operates in constant cur, constant resistance and constant power modes. The Kikusui PCZ1000A resistive AC load also is equipped with a crest factor function that is suitable for simulating cur load testing for switching power supplies. Improved operation through CPU control as well as external controls and read-back via RS-232C, the Kikusui PCZ1000A supports up to 1000W of input power. Parallel operation is available, and up to 5 units can be operated in parallel to support up to 5000W power. The Kikusui PCZ1000A also facilitates load tests for peak or harmonic curs, which helps reduce design and labor time and costs while improving the quality of the device under test. Specifications for the Kikusui PCZ1000A AC Electronic Load Include:
