Kikusui PLZ-1004W
| Attribute | Value |
|---|---|
| Maximum Power | 1000 W |
| Maximum Voltage | 150 V |
| Maximum Current | 240 A |
| Minimum Operating Voltage | 1.5 V |
| Operating Modes | CC, CV, CR, CP |
| Input Voltage (AC) | 100/115/230 VAC, 50/60 Hz |
| Interface | GP-IB (IEEE-488), RS-232C |
| Dynamic Mode Frequency Range | DC to 10 kHz |
| Cooling Method | Forced air cooling |
| Dimensions (W x H x D) | 425 mm x 132 mm x 550 mm (3U rack mount) |
| Model | PLZ-1004W |
|---|

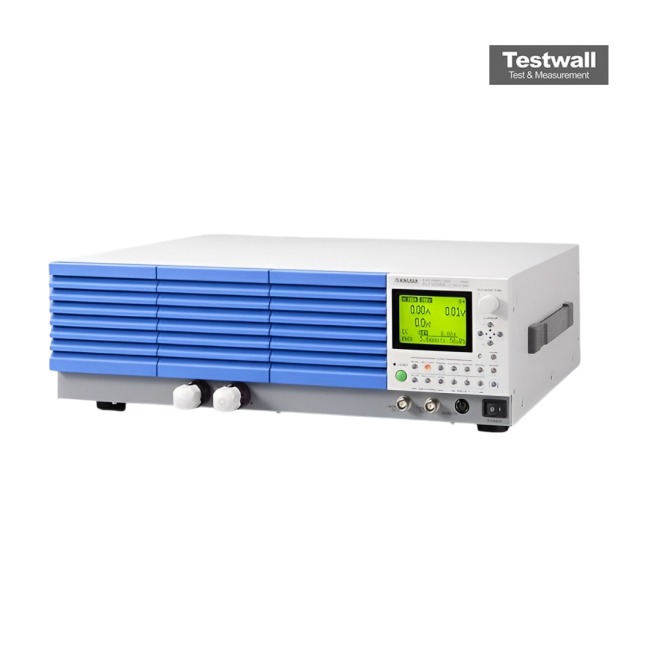

The Kikusui PLZ-1004W 1000W DC Electronic Load operates within a 1.5–150V, 200A range, offering up to 1000W input. It supports constant current, voltage, resistance, and power modes, with parallel operation capability and PLZ2004WB booster compatibility. Features include high-speed response at 16A/μs, minimum resolution of 10μA, advanced metering, soft start, variable slew rate, sequence functions, timer, and battery discharge measurement. Interfaces include GPIB, RS-232C, and USB 2.0, supporting IEEE 488.2 and SCPI protocols.
Ideal for R&D in semiconductors, fuel cells, and power electronics, the PLZ-1004W ensures precision under demanding low-voltage, high-speed conditions. Its expandable master/slave design enables up to 9kW and 1800A testing capacity.
Testwall can supply the used Kikusui PLZ-1004W, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kikusui PLZ-1004W.
