Kikusui PLZ1004WH
| Attribute | Value |
|---|---|
| Maximum Power | 1000 W |
| Maximum Voltage | 800 V |
| Maximum Current | 240 A |
| Minimum Operating Voltage | 1.5 V |
| Operating Modes | CC, CV, CR, CP |
| Input Interface | USB, RS-232C, GP-IB (optional) |
| Response Speed (CC Mode) | High-Speed and Low-Speed selectable |
| Power Supply Requirement | 100–240 V AC, 50/60 Hz |
| Cooling Method | Forced air cooling (fan) |
| Dimensions (W x H x D) | 425 mm x 132.5 mm x 550 mm (3U rack size) |
Kikusui PLZ1004WH Options:
- PLZ1004WH - PLZ2004WHB - Booster unit (exclusively for PLZ1004WH, 100 A / 2000 W, up to 4 units connectable for 9 kW/450 A)
- PLZ1004WH - PC01-PLZ-4W - Parallel operation cable (for connecting same-model units in parallel)
- PLZ1004WH - PC02-PLZ-4W - Parallel operation cable (for connecting main unit and booster)
- PLZ1004WH - Wavy for PLZ-4W - Sequence creation and control software (Windows 7/Windows 8)
| Model | PLZ1004WH |
|---|

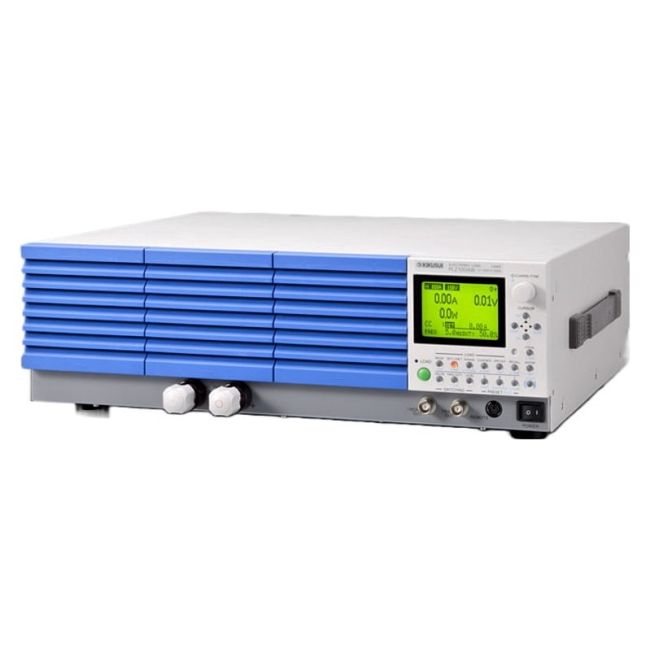

KIKUSUI PLZ1004WH DC Electronic Load
The Kikusui PLZ1004WH DC Electronic Load is a multifunctional system designed to offer the highest levels of reliability and safety. The electronic load contains a stable and high performance current-control circuit that enables high-speed load simulations with maximum operating voltage of 650V. In addition, its CPU control feature works to improve operability and multifunctional capability. The high-precision cur settings provide you with sufficient resolution. The PLZ1004WH comes standard with GPIB, RS232C, and USB communication functions, that can be easily incorporated into a wide range of test and inspection systems.
The Kikusui PLZ1004WH can be used to evaluate EV and HEV in-vehicle chargers, DC/ DC converters, and battery cells; evaluate power supplies for high-voltage DC electric supply systems; perform PFC tests on European and other three-phase 400 V system input power supplies; and evaluate and test high-voltage parts related to such equipment. The PLZ1004WH is equipped with six operation modes: constant current, constant resistance, constant voltage, constant power, constant cur + constant voltage, and constant resistance + constant voltage modes. The front panel is the common design in all of PLZ-4W Series. Since operability is uniform, tests can be set up quickly and easily.
Specifications for the KIKUSUI PLZ1004WH DC Electronic Load Include:
| Voltage Range | 5 to 650V |
| Cur Range | 50A |
| Total Power | 1000W |
| Min Operating Voltage | 50mV |
