Leader

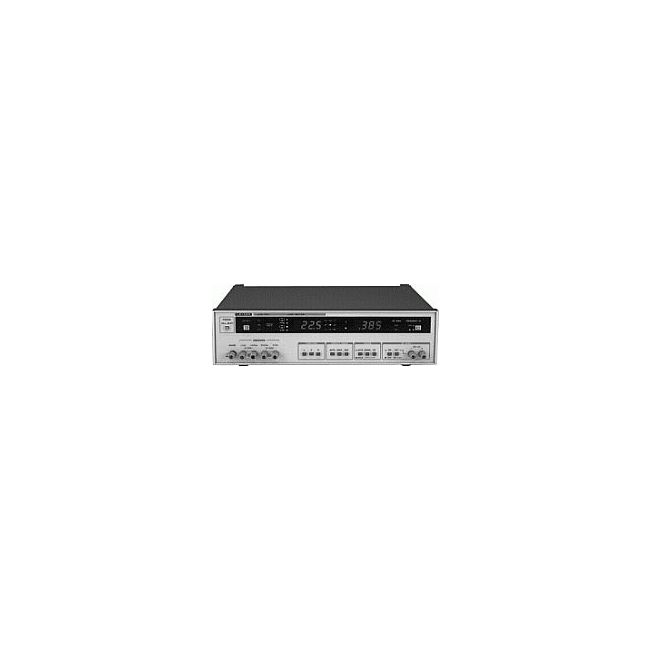

Leader LCR745
Inductance (L), Capacitance (C), Resistance (R) Measurement Functions
100 Hz, 120 Hz, 1 kHz, 10 kHz Test Frequency
0.001 mH to 9999 H Inductance Range
0.001 pF to 9.999 F Capacitance Range
0.001 Ω to 99.99 MΩ Resistance Range
| Attribute | Value |
|---|---|
| Measurement Functions | Inductance (L), Capacitance (C), Resistance (R) |
| Test Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz |
| Inductance Range | 0.001 mH to 9999 H |
| Capacitance Range | 0.001 pF to 9.999 F |
| Resistance Range | 0.001 Ω to 99.99 MΩ |
| Basic Accuracy | 0.1% |
| Display | Dual 4.5-digit LCD display (simultaneous primary and secondary parameter readout) |
| Test Signal Level | 0.5 Vrms (open circuit) |
| Power Supply | AC 100/120/220/240 V, 50/60 Hz |
| Interface / Connectivity | RS-232C serial interface for remote control and data transfer |
Leader LCR745 Options:
- LCR-745 - G - GPIB Interface Option
- LCR-745 - LF-2350 - Test Fixture with 1 meter test cable terminated in gold plated Kelvin clips for component testing (includes guard clip)
- LCR-745 - LF-2351 - Test Fixture with low insertion force connectors for rapid testing of axial and radial lead components
- LCR-745 - LC-2067 - 1 meter GPIB Cable
- LCR-745 - LC-2068 - 2 meter GPIB Cable
| Model | LCR745 |
|---|
