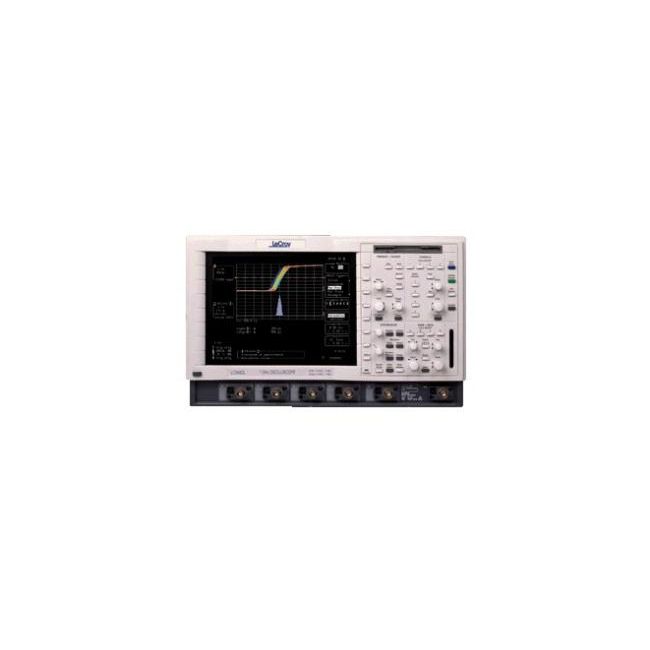

LeCroy 9345AL
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 500 MS/s |
| Number of Channels | 4 |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Pattern, State, TV, Slew Rate, UART, SPI, I2C |
| Model | 9345AL |
|---|
The LeCroy 9345AL, part of the 9344C/9350C series, is designed specifically for analog validation with powerful SmartTrigger capabilities and flexible interface options. It supports deep segmented memory and a wide range of timebases from nanoseconds to hundreds of seconds per division.
Ideal for precise analog signal analysis, the LeCroy 9345AL offers Autoset for quick automatic configuration, ensuring efficient setup and streamlined measurements for complex analog tasks.
Testwall can supply the used LeCroy 9345AL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9345AL.
