Teledyne LeCroy

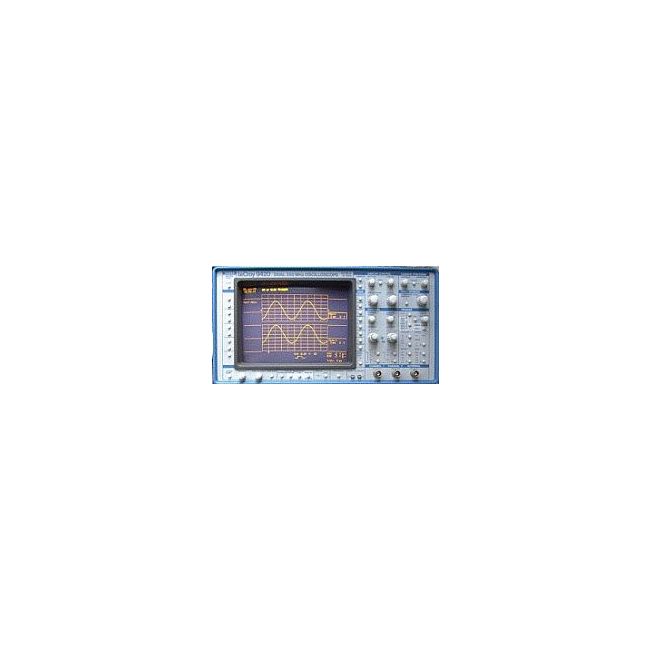

LeCroy 9420
350 MHz Bandwidth
2 Channels
500 MS/s Sample Rate
50,000 points per channel Record Length
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Channels | 2 |
| Sample Rate | 500 MS/s |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 200 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 8-inch color CRT display |
| Trigger Modes | Edge, Pattern, State, TV, Glitch, Slew Rate |
| Model | 9420 |
|---|
The LeCroy 9420 is a dual- or quad-channel digital oscilloscope from the 94xx series, ideal for mid-range signal evaluation with an estimated bandwidth up to 150 MHz and dual interleaved sampling for enhanced resolution.
It features a timebase resolution of 10 ps via internal interpolation circuitry, GPIB and RS‑232 remote control capabilities, and supports screen dump or plotter output for efficient documentation.
Testwall can supply the used LeCroy 9420, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9420.
