Teledyne LeCroy

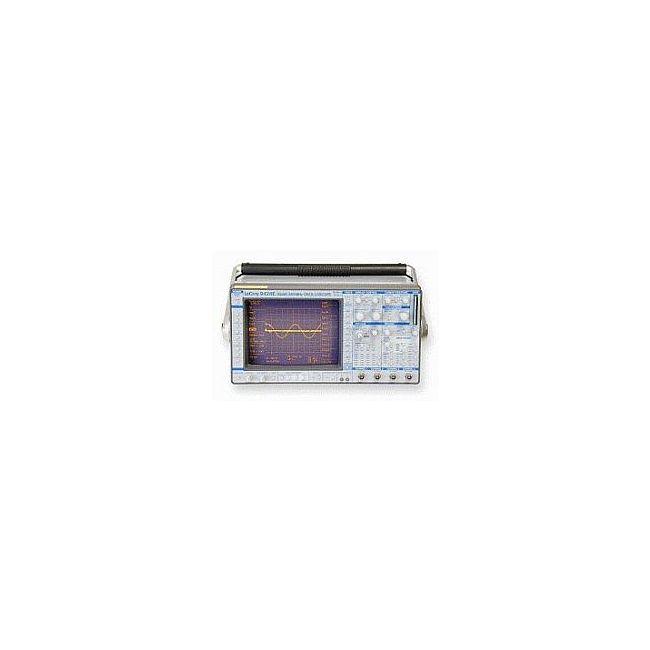

LeCroy 9424E
350 MHz Bandwidth
4 Number of Channels
1 GS/s Sample Rate
50,000 points per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 4 |
| Sample Rate | 1 GS/s |
| Memory Depth | 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Pulse Width, Pattern, TV, Glitch, Slew Rate, Interval |
| Model | 9424E |
|---|
The LeCroy 9424E is an advanced member of the 94xx series, designed for enhanced memory and channel configurations. It supports dual or quad setups, with bandwidth and trigger systems similar to the 9420/9400 series models.
It includes GPIB and RS‑232 remote control options and integrates standard plot/dump capabilities, making it suitable for automated and remote measurement tasks.
Testwall can supply the used LeCroy 9424E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9424E.
