Teledyne LeCroy

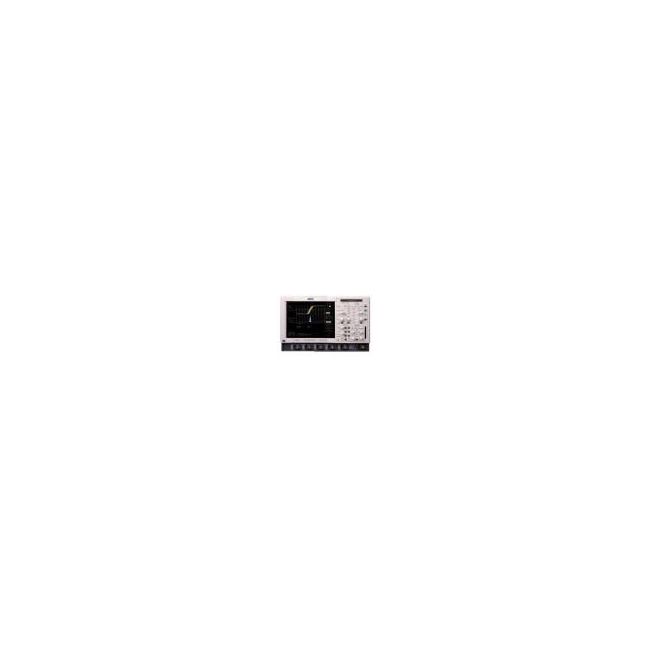

LeCroy LC564A
4 Channel 1GHz 4GS/s Digital Storage Oscilloscope
1 GHz Bandwidth
4 Channels
4 GS/s (single channel), 2 GS/s (per channel, all channels active) Sample Rate
4 Mpts/channel (up to 16 Mpts with optional memory upgrade) Memory Depth
8-bit (up to 11-bit with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 |
| Sample Rate | 4 GS/s (single channel), 2 GS/s (per channel, all channels active) |
| Memory Depth | 4 Mpts/channel (up to 16 Mpts with optional memory upgrade) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD, 640 x 480 resolution |
| Trigger Types | Edge, Width, Glitch, TV, Pattern, State, Dropout, Interval, Slew Rate, and more |
LeCroy LC564A Options:
- LC564A - MC01/04 - Memory Card Reader and 512k SRAM Card
- LC564A - HD01 - PC Card Slot for Hard Drives and ATA Flash Cards (supports maximum 520 MB hard disk cards)
- LC564A - HD02 - PC Card Hard Disk 520 MB (requires HD01 option)
- LC564A - 4MBFC - 4 MB ATA Flash Card (requires HD01 option)
- LC564A - DA01-110 - PC Card External Desktop Adaptor for PC (110 V)
- LC564A - DA01-220 - PC Card External Desktop Adaptor for PC (220 V)
- LC564A - CKTRIG - 500 MHz Ext Clock, 10 MHz Ref Input, Trigger Comparator Output
- LC564A - 64MBSM - 64 Mbyte System Memory
- LC564A - GP01 - Internal Graphics Printer
- LC564A - WP03 - Parameter Analysis Package (Includes Histogramming and Trending)
- LC564A - MT01 - ITU G.703 Fully Automated Mask Tester
- LC564A - MT02 - ANSI T1.102 Fully Automated Mask Tester
- LC564A - MT03 - O/E and reference receiver for ITUG.957 STM-1 and STM-4 Fully Automatic Mask Tester (LC564DL only)
- LC564A - JTA - Jitter and Timing Analysis Package
- LC564A - DDM - Disk Drive Measurements
- LC564A - PRML - Supplementary Disk Drive Measurements
- LC564A - AORM - Advanced Optical Recording Measurements
- LC564A - PMA1 - Power Measure Analysis Software
- LC564A - PMSK - Polymask Software
- LC564A - DFP - Digital Filter Package
| Model | LC564A |
|---|
The LeCroy LC564A is a high-performance 1 GHz digital oscilloscope offering four channels, sample rates up to 4 GS/s, and versatile waveform analysis capabilities. It includes memory up to 250 kpts/channel in four-channel mode and 500 kpts/channel in single-channel mode.
Advanced features include waveform math, FET probe power supply, spectral and parameter display modes, plus expandable RAM up to 16 MB and a floppy disk drive for data export.
Testwall can supply the used LeCroy LC564A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy LC564A.
