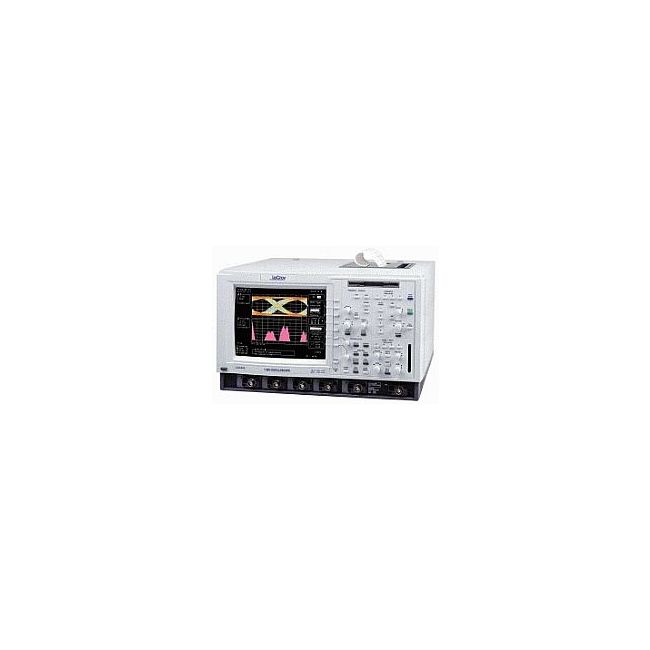

LeCroy LC584AL
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 |
| Sample Rate | 4 GS/s (single channel), 2 GS/s (per channel, all channels active) |
| Memory Depth | 4 Mpts/channel (up to 16 Mpts interleaved) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 50 Ω or 1 MΩ (switchable) |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Pattern, State, TV, Glitch, Slew Rate, Width, Dropout, Interval, and more |
| Model | LC584AL |
|---|
The LeCroy LC584AL stands at the pinnacle of the LC500 series, offering a 1 GHz bandwidth and superior acquisition capabilities. In single-channel mode, it delivers up to 8 GS/s sampling, while supporting 2 GS/s per channel across four channels. Its SmartMemory™ architecture allows memory depth of 16 Mpts for single-channel and 8 Mpts for all-channel operation. Triggering options include pattern, glitch, interval, dropout, and TV sync, with the ability to detect signal widths down to 600 ps.
This oscilloscope excels in capturing high-speed signals with precision, making it ideal for advanced electronic diagnostics, embedded systems, and high-frequency circuit analysis.
Testwall can supply the used LeCroy LC584AL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy LC584AL.
