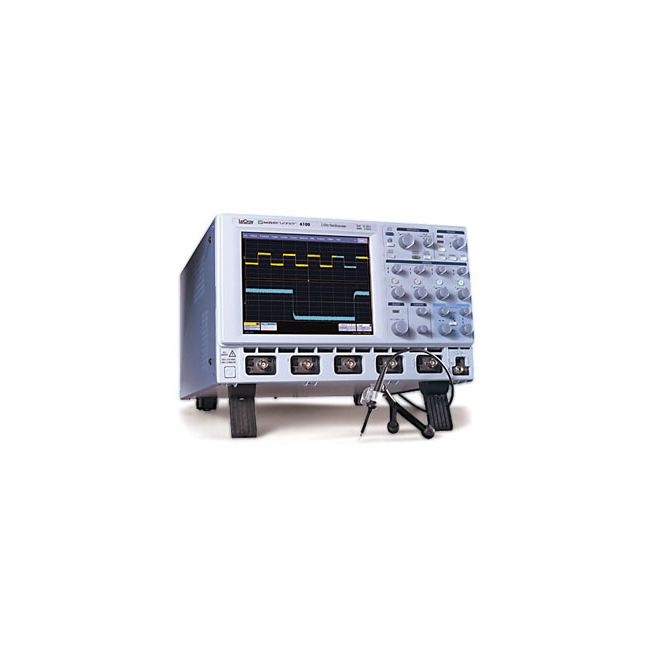

LeCroy WaveRunner 64Xi
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 10 GS/s (single channel), 5 GS/s (two channels), 2.5 GS/s (four channels) |
| Memory Depth | Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch |
| Vertical Resolution | 8 bits (up to 11 bits with enhanced resolution) |
| Input Impedance | 1 MΩ or 50 Ω |
| Time Base Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Slew Rate, UART, SPI, I2C, CAN, LIN, and more |
| Connectivity / Interface | USB, Ethernet (LAN), GPIB (optional), CompactFlash, VGA output |
| Model | WaveRunner 64Xi |
|---|
The WaveRunner-64Xi oscilloscope delivers 600 MHz analog bandwidth and up to 10 GS/s sampling rate, making it ideal for high-speed signal analysis. It features X-Stream II architecture for fast waveform acquisition, WaveStream™ viewing mode for real-time observation, and color-coded traces for clarity. Its Windows-based interface supports seamless data management with integrated report generation.
Perfect for advanced debugging and signal integrity analysis, the WaveRunner-64Xi is engineered for long memory capture and high acquisition rates in demanding electronic testing environments.
Testwall can supply the used WaveRunner-64Xi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the WaveRunner-64Xi
