Magna Power TSA800-24
| Attribute | Value |
|---|---|
| Output Voltage | 800 VDC |
| Output Current | 24 A |
| Output Power | 19,200 W (19.2 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Input Frequency | 47–63 Hz |
| Voltage Regulation | 0.05% of full scale |
| Current Regulation | 0.1% of full scale |
| Programming Interface | Analog, RS-232, RS-485, GPIB, Ethernet (optional) |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0°C to 50°C |
Magna Power TSA800-24 Options:
- TSA800-24 - SP - 208/240 Vac Single-Phase Input (5 kW Only)
- TSA800-24 - CAB1 - Cabinet and Integration (32" x 24" x 31.5", 12U)
- TSA800-24 - CAB2 - Cabinet and Integration (51.5" x 24" x 31.5", 24U)
- TSA800-24 - CAB3 - Cabinet and Integration (67" x 24" x 31.5", 30U)
- TSA800-24 - CAB4 - Cabinet and Integration (75" x 24" x 31.5", 36U)
- TSA800-24 - +ISO - High Isolation Output
- TSA800-24 - +HS - High Slew Rate Output
- TSA800-24 - +GPIB - IEEE-488 GPIB Interface
- TSA800-24 - +LXI - LXI TCP/IP Ethernet Interface
- TSA800-24 - PPPE - Photovoltaic Power Profile Emulation
- TSA800-24 - RS485 - RS-485 Converter
- TSA800-24 - UID - UID47: Universal Interface Device
- TSA800-24 - USB - USB Edgeport Converter
- TSA800-24 - +WC - Water Cooling
| Model | TSA800-24 |
|---|

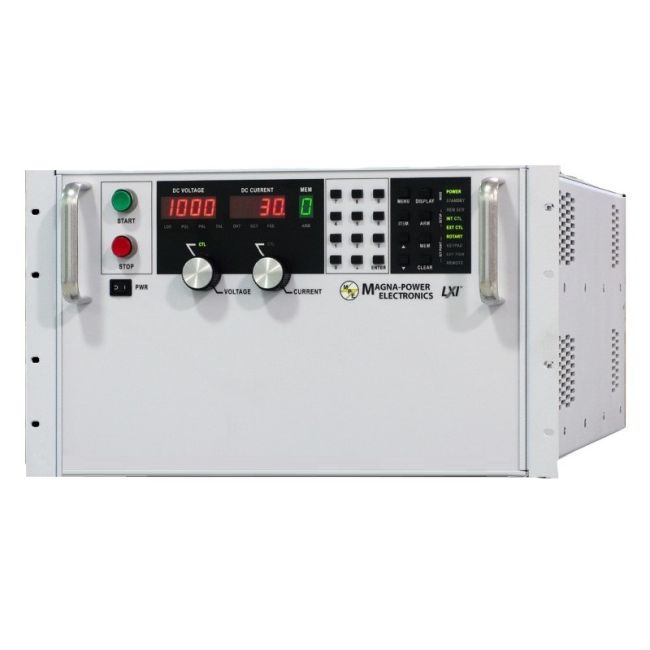

MAGNA-POWER TSA800-24 DC Power Supply
Magna-Power Electronics TSA800-24 provides a wide voltage and cur range while still maintaining among the highest power density rack-mount packaging. The TSA800-24 covers voltages up to 800 Vdc (floating) and cur levels up to 24 Adc. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232, Remote Interface Software, IVI drivers for integration into a variety of programming environments. The A Version front panel provides a digital display with rotary front panel input, isolated 37-pin analog/digital I/O, and a RS232 computer interface.
All TS Series Magna-Power DC power supplies come with a dedicated National Instruments LabVIEW driver, Interchangeable Virtual Instrument (IVI) driver, and support for a wide range of Standard Commands for Programmable Instrumentation (SCPI). Magna-Power Electronics programmable DC power supplies are designed to be as versatile and expandable as possible. A variety of options are available allowing the product to deviate from its standard specifications.
Specifications for the MAGNA-POWER TSA800-24 DC Power Supply Include:
| Voltage | 800V |
| Current | 24A |
| Power | 20 kW |
| Efficiency | ‰¥ 86% at full load |
