Magna Power TSD1000-30
| Attribute | Value |
|---|---|
| Output Voltage | 1000 VDC |
| Output Current | 30 A |
| Output Power | 30,000 W (30 kW) |
| Input Voltage | 208/240 VAC, 3-Phase |
| Line Regulation | 0.02% of full scale output |
| Load Regulation | 0.02% of full scale output |
| Ripple and Noise | 0.05% RMS / 0.15% peak-to-peak of full scale output |
| Programming Accuracy | 0.1% of full scale output |
| Operating Temperature | 0°C to 50°C |
| Interface Options | Analog, RS-232, GPIB, Ethernet, and Modbus TCP/IP |
Magna Power TSD1000-30 Options:
- TSD1000-30 - SP - 208/240 Vac Single-Phase Input (5 kW Only)
- TSD1000-30 - CAB1 - Cabinet and Integration (32" x 24" x 31.5", 12U)
- TSD1000-30 - CAB2 - Cabinet and Integration (51.5" x 24" x 31.5", 24U)
- TSD1000-30 - CAB3 - Cabinet and Integration (67" x 24" x 31.5", 30U)
- TSD1000-30 - CAB4 - Cabinet and Integration (75" x 24" x 31.5", 36U)
- TSD1000-30 - +ISO - High Isolation Output
- TSD1000-30 - +HS - High Slew Rate Output
- TSD1000-30 - +GPIB - IEEE-488 GPIB Interface
- TSD1000-30 - +LXI - LXI TCP/IP Ethernet Interface
- TSD1000-30 - PPPE - Photovoltaic Power Profile Emulation
- TSD1000-30 - RS485 - RS-485 Converter
- TSD1000-30 - UID47 - Universal Interface Device
- TSD1000-30 - USB - USB Edgeport Converter
- TSD1000-30 - +WC - Water Cooling
| Model | TSD1000-30 |
|---|

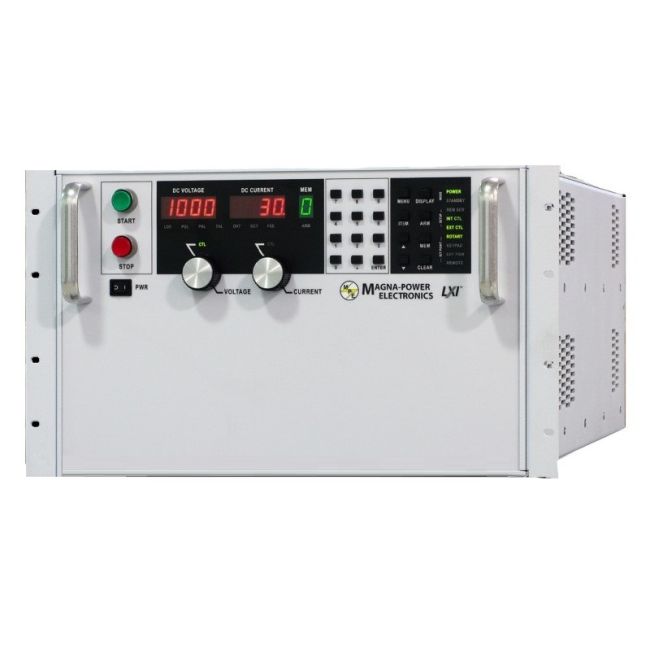

MAGNA-POWER TSD1000-30 DC Power Supply
The Magna-Power TSD1000-30 DC Power Supply is a versatile and high-power solution for various applications. This power supply covers voltages up to 1000 Vdc (floating) and cur levels up to 30 Adc. The TSD1000-30 DC power supply utilizes a robust power conversion topology based on high-frequency IGBT-based power processing in current-fed topology, providing enhanced control, self-protection, and stability under fault conditions. In addition to their impressive power capabilities, the Magna-Power TSD1000-30 DC power supply offers advanced programming features, including high accuracy programming and measurement, simultaneous measurement interfaces, and SCPI remote programming API compatibility.
The Magna-Power TSD1000-30 DC Power Supply is designed with safety in mind, incorporating an AC mechanical contactor with in-rush limiter and extensive diagnostic functions to protect both the unit and the system. The TSD1000-30 DC power supply supports high-performance plug and play master-slaving, enabling easy expansion of power capabilities by adding additional units. With various options available, these power supplies can be tailored to suit specific application requirements. The Magna-Power TSD1000-30 DC Power Supply comes with isolated 37-pin external I/O, RS232, Remote Interface Software, and IVI drivers for easy integration into various programming environments. All MagnaDC power supplies come standard with an IVI driver and an NI LabVIEW driver featuring a full set of VIs.
Specifications for the MAGNA-POWER TSD1000-30 DC Power Supply Include:
| Voltage | 1000V |
| Current | 30A |
| Power | 30 kW |
| Efficiency | 88% |
