Marconi IFR Aeroflex 6210
| Attribute | Value |
|---|---|
| Frequency Range | 250 MHz to 26.5 GHz (host dependent) |
| Directivity | >50 dB (7 mm full cal kit) |
| Dynamic Range | >60 dB (500 MHz to 18 GHz) |
| Test Port | 3.5 mm male, 0.5 W max |
| Source Match | >40 dB (7 mm full cal kit) |
| Frequency Range by Host | 6202B: 250 MHz–2 GHz; 6201B: 250 MHz–8 GHz; 6200B: 250 MHz–20 GHz; 6203B/6204B: 250 MHz–26.5 GHz |
| Directivity / Source Match (3.5 mm & Type N full kits) | >40 dB / >30 dB |
| Frequency Response | ±0.1 dB (7 mm), ±0.2 dB (3.5 mm, Type N full kits) |
| Dynamic Range (full band) | >50 dB 250–500 MHz; >60 dB 500 MHz–18 GHz; >50 dB 18–26.5 GHz |
| Time Domain | Lowpass step, lowpass impulse, bandpass impulse; gating; 0.7 cm resolution |
| Displays | Polar, Smith chart, return loss |
| Calibration Stores | 4 × 2 to 800 points |
| Calibration Kits | Type N, 3.5 mm and 7 mm |
| Compatibility | 6200B, 6201B, 6202B, 6203B, 6204B Microwave Test Sets (software 2.0 or later) |
| Options | 011 Bias tee (±42 V, 0.5 A); 012 Retrofit kit |
| Power Consumption | 50 W max (plus host MTS) |
| Dimensions | 46 × 325 × 450 mm (H × W × D) |
| Weight | 6.5 kg |
| Model | 6210 |
|---|

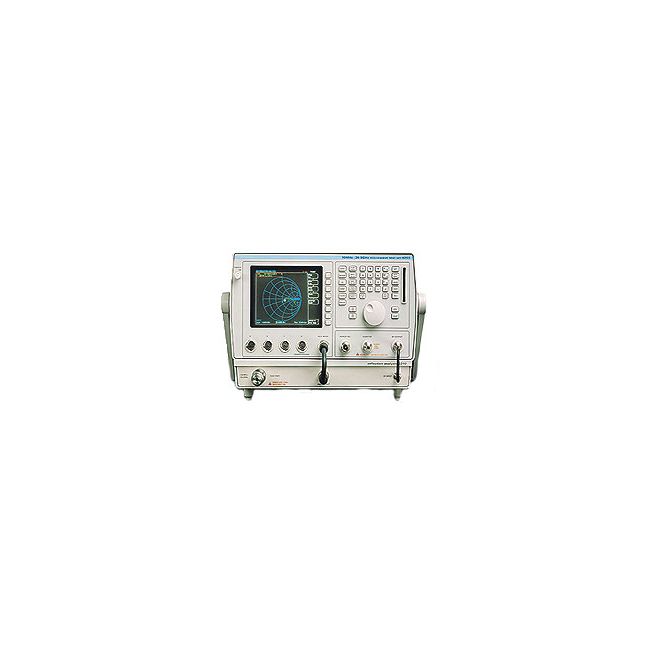

The Marconi IFR Aeroflex 6210 Reflection Analyzer adds precise reflection coefficient and time domain measurements to the 6200B series Microwave Test Sets. Its directivity and test port match are better than an autotester's, so error-corrected return loss measurements come out more accurate, and time domain analysis with gating pinpoints impedance discontinuities in cables, connectors and components.
The 6210 suits production test, component alignment and microwave R&D. Polar and Smith chart displays make device matching easy, and the fast sweep speeds up alignment work.
Testwall can supply the used Marconi IFR Aeroflex 6210, fully tested and covered by a 12-month warranty. Calibration and repair are available on request. Contact us for a quote.
