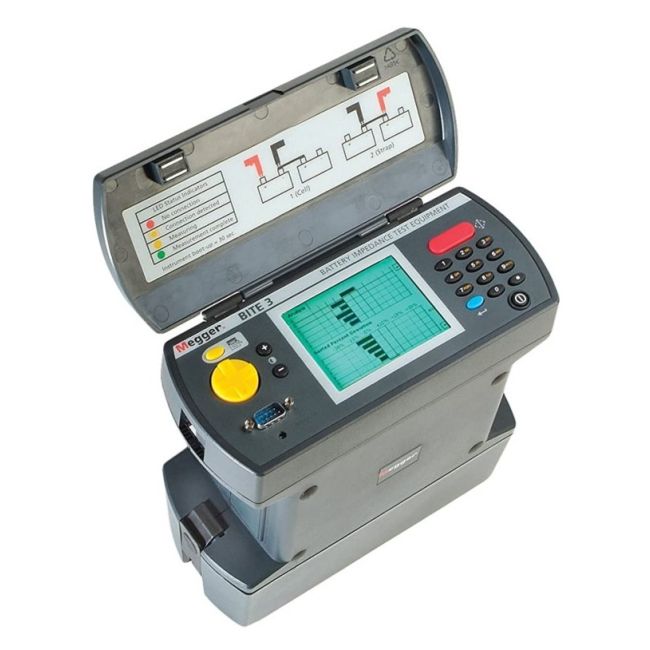

Megger BITE3
| Attribute | Value |
|---|---|
| Battery Test Voltage Range | 1 V to 120 V DC |
| AC Ripple Voltage Measurement | Up to 9.999 V AC RMS |
| Internal Resistance Measurement Range | 0.001 mΩ to 999.9 Ω |
| Test Current | Up to 10 A |
| Battery Capacity Range | 1 Ah to 9999 Ah |
| Data Storage | Up to 10,000 test records stored internally |
| Communication Interface | USB and Bluetooth connectivity for data transfer |
| Display | Color touchscreen LCD display |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Power Supply | Rechargeable lithium-ion battery pack |
Megger BITE3 Options:
- BITE3 - 36616 - Lead set, 6 ft (1.8 m) probe to probe
- BITE3 - 35755-3 - Printer, battery-operated, 110 V ac
- BITE3 - 35755-4 - Printer, battery-operated, 220 V ac
- BITE3 - 26999 - Printer paper, 1 roll
- BITE3 - BI-10004 - AMP/Burndy lead set
- BITE3 - BI-10005 - Kelvin clip lead set
- BITE3 - BI-10006 - Quick Disconnect lead set
- BITE3 - 6280-332 - Cigarette lighter charger
- BITE3 - 35873 - Current transformer kit
- BITE3 - 35871 - USB-serial adapter
- BITE3 - 35865 - Probe extensions, lighted
- BITE3 - 35890 - Hard-sided carrying case
- BITE3 - 35915 - Standard transit case
- BITE3 - 249003 - Field test shunt, 0.01 Ω, current rating 10 A
- BITE3 - 249004 - Field test shunt, 0.001 Ω, current rating 100 A
- BITE3 - 249005 - Field test shunt, 0.0001 Ω, current rating 500 A
| Model | BITE3 |
|---|
The Megger BITE3 Battery Impedance Test Equipment provides precise analysis of lead-acid cells by measuring impedance, voltage, intercell resistance, ripple current, and harmonic content. With a built-in spectrum analyzer and rapid test times, one operator can evaluate complete strings without taking systems offline. Power DB software integration ensures easy configuration and data transfer for streamlined reporting and analysis.
Applications include power generation plants, substations, telecommunications facilities, UPS systems, and aircraft power supplies. Its advanced diagnostic capability helps detect failing cells early, ensuring system reliability and extended battery life.
Testwall can supply the used Megger BITE3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger BITE3.
