Megger DELTA4310
| Attribute | Value |
|---|---|
| Test Voltage Range | Up to 12 kV |
| Measurement Type | Power Factor / Tan Delta (Dissipation Factor) |
| Frequency Range | 15 Hz to 400 Hz |
| Capacitance Measurement Range | 1 pF to 100 µF |
| Tan Delta Resolution | 0.1 × 10⁻⁴ |
| Test Modes | GST, UST, GSTg (Grounded Specimen Test, Ungrounded Specimen Test) |
| Power Supply | 90 – 264 V AC, 47 – 63 Hz |
| Display / Interface | Built-in touchscreen display with PC software connectivity via USB |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Standards Compliance | IEC 60250, IEEE 286, ASTM D150 |
Megger DELTA4310 Options:
- DELTA4310 - DB1001S-A - PowerDB Pro software, on USB dongle
- DELTA4310 - DB1001-A - PowerDB Pro software, via soft key
- DELTA4310 - D4K-P-ACCESS - Priority Access annual support plan
- DELTA4310 - Y12-WARRANTY - Product warranty
- DELTA4310 - D4K-TRAINING - Training
- DELTA4310 - D4K-SOFTWARE - PowerDB software maintenance and upgrades
- DELTA4310 - D4K-TECHSUPPORT - 24/7 technical support
- DELTA4310 - D4K-ENGCONSULT - Engineering consulting and results analysis
- DELTA4310 - D4K-LOANER - Loaner unit and accessories
- DELTA4310 - 1001-852 - Safety foot switch
- DELTA4310 - Y37181 - External strobe
- DELTA4310 - 1001-853 - External strobe extension cable, 18 m (60 ft)
- DELTA4310 - 1001-932 - Transport case, 2-piece design kit
- DELTA4310 - 1001-933 - Transport case, 3-piece design kit
- DELTA4310 - 1001-530 - Transport cart / trolley
- DELTA4310 - 2002-137 - Calibration box set for CAL4000
- DELTA4310 - 670500-1 - Calibration standard
- DELTA4310 - 670635 - Transit cases for calibration standard
- DELTA4310 - 36610 - HV TTR capacitor, single phase (10 nF, 10 kV)
- DELTA4310 - 36610-1 - HV reference capacitor (100 pF, 10 kV)
- DELTA4310 - 36610-2 - HV reference capacitor (1000 pF, 10 kV)
- DELTA4310 - 36610-CC - Carry case for capacitors
- DELTA4310 - 36610-KIT2 - Capacitor kit (TTR cap, 2 ref caps, carry case)
- DELTA4310 - 670600-1 - Resonating inductor
- DELTA4310 - 36493-1 - Thermal Pentax® printer, 120 V
- DELTA4310 - 36494-1-KIT - Thermal Pentax® printer, 240 V
- DELTA4310 - 36809-1 - Thermal paper (8.5" x 11") for printer
- DELTA4310 - 36809-2 - Thermal paper (A4) for printer
- DELTA4310 - 670511 - Oil test cell
- DELTA4310 - 670505 - Hot collar belts [3]
- DELTA4310 - 670506 - Bushing tap connectors [2]
- DELTA4310 - 2002-138 - External temperature and humidity probes
- DELTA4310 - 36528 - USB bar code wand and software
- DELTA4310 - 670501 - Accessory kit: hot collar straps, temperature/humidity meters, bushing tap connectors, shorting leads
| Model | DELTA4310 |
|---|

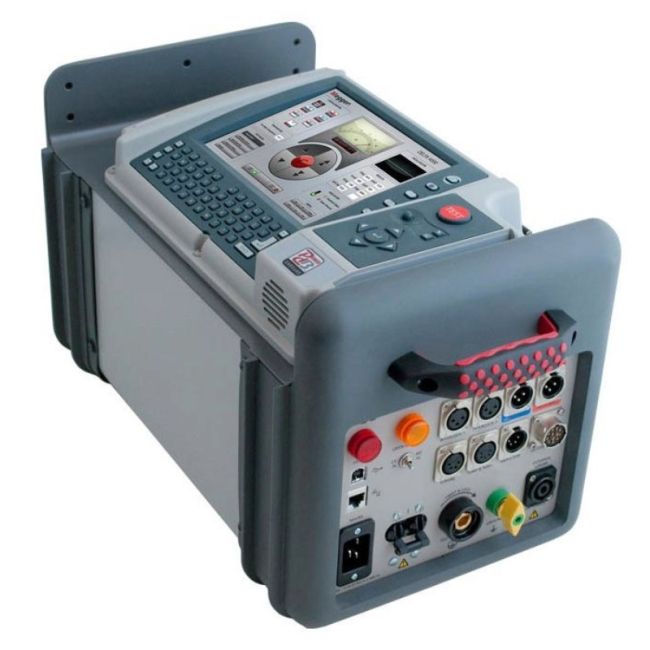

The Megger DELTA4310 Delta Power Factor Test Set is designed to evaluate insulation integrity in high-voltage equipment such as transformers, bushings, circuit breakers, cables, arresters, and rotating machinery. It supports excitation current measurement, automatic tip-up tests, and HV turns-ratio testing. With advanced noise suppression, it manages up to 15 mA interference current or 1:20 SNR, ensuring precise and reliable results under challenging conditions.
Featuring patented voltage-dependence detection with intelligent alarms, the unit helps identify insulation issues at different voltage levels. Temperature correction and tan delta frequency measurements provide accurate insights, while PowerDB and Delta Control software enable automated or manual testing with seamless reporting.
Testwall can supply the used Megger DELTA4310 Delta Power Factor Test Set, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger DELTA4310 Delta Power Factor Test Set.
