Megger DLRO10HD
| Attribute | Value |
|---|---|
| Measurement Range | 0.1 µΩ to 99.99 Ω |
| Test Current | 10 A DC (maximum) |
| Accuracy | ±0.2% of reading ±0.2% of full scale |
| Power Supply | Internal rechargeable NiMH battery pack or external 12 V DC |
| Display | Backlit LCD with dual display showing resistance and test current |
| Memory Storage | Up to 1000 test results stored internally with download capability via USB |
| Operating Temperature | -15°C to +50°C (5°F to 122°F) |
| Protection Rating | IP54 (dust and splash protected) |
| Weight | Approximately 3.5 kg (7.7 lbs) including battery |
| Safety Standards | CAT III 600 V, compliant with IEC 61010-1 and IEC 61557-4 |
Megger DLRO10HD Options:
- DLRO10HD - 1006-603 - DLRO10HD + DH4-C probe 1.5m leads
- DLRO10HD - 1006-604 - DLRO10HD + KC1 Kelvin clip 3m leads
- DLRO10HD - 1006-657 - DLRO10HD without test leads supplied
- DLRO10HD - 1002-390 - Terminal cover (for CATIII 300V compliance, use with DH4 or optional DH5 test leads)
| Model | DLRO10HD |
|---|

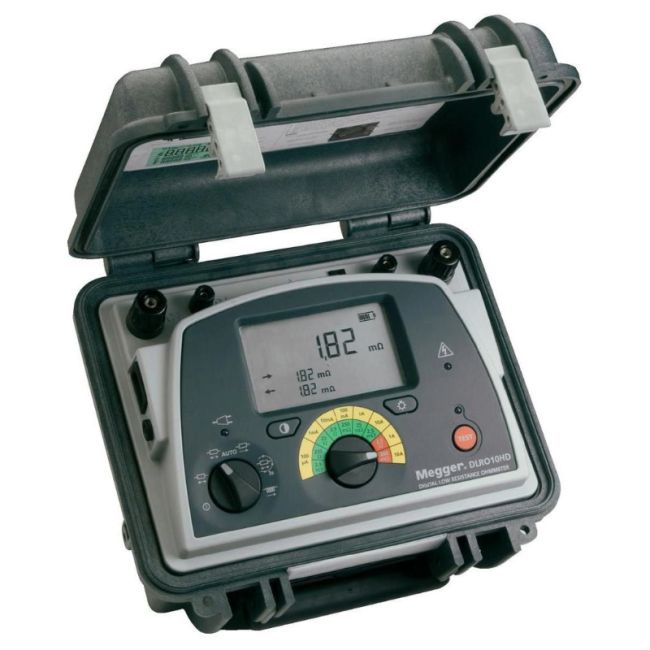

The Megger DLRO10HD Low Resistance Ohmmeter provides precise measurement of very low resistances in electrical circuits. It delivers 10 A into circuits up to 250 mΩ and 1 A into circuits up to 2.5 Ω, making it highly effective for verifying bonding connections, grounding systems, motor windings, and other critical low-resistance applications. The unit allows tests up to 60 seconds with high or low power output options, providing reliable diagnosis under varied conditions.
Equipped with five selectable test modes—bidirectional, unidirectional, automatic, continuous, and inductive—the DLRO10HD adapts to diverse testing environments. A rotary switch enables simple mode selection, operable even with gloves, while the large backlit LCD ensures clear visibility. Its rugged IP54/IP65-rated case ensures durability and functionality in all-weather conditions.
Testwall can supply the used Megger DLRO10HD, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger DLRO10HD.
