Megger MPQ1000
| Attribute | Value |
|---|---|
| Measurement Parameters | Voltage, Current, Power (W), Power Factor, Harmonics, Frequency, Flicker, Unbalance, and Power Quality Events |
| Voltage Input Range | Up to 1000V CAT III / 600V CAT IV (phase-to-neutral and phase-to-phase) |
| Current Input Range | Compatible with flexible Rogowski coils and clamp-on current transformers; supports up to 10,000A |
| Harmonic Analysis | Measures harmonics up to the 50th order for voltage and current |
| Standards Compliance | IEC 61000-4-30 Class A compliant for power quality measurements |
| Number of Phases | Single-phase, split-phase, and three-phase (3P3W, 3P4W) configurations supported |
| Data Storage | Internal memory with support for extended logging; data exportable via USB |
| Display | Color LCD touchscreen display for real-time waveform and parameter visualization |
| Communication Interface | USB connectivity; compatible with Megger PowerDB or equivalent power quality analysis software |
| Power Supply | Powered via measured line voltage or external power adapter; suitable for continuous field monitoring |
Megger MPQ1000 Options:
- MPQ1000 - MPQ1000-BASIC - MPQ1000 Basic Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, fuse adapters and hanging strap (no current clamps)
- MPQ1000 - MPQ1000-S-KIT - MPQ1000 Silver Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, hanging strap, voltage lead plunger clips, and 3 MCCV6000-18 (four range flex 18 cm ID) CTs
- MPQ1000 - MPQ1000-S-KIT-PLUS - MPQ1000 Silver Plus Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, hanging strap, voltage lead plunger clips, and 4 MCCV6000-18 (four range flex 18 cm ID) CTs
- MPQ1000 - MPQ1000-G-KIT - MPQ1000 Gold Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, hanging strap, voltage lead plunger clips, and 3 MCCV6000-27 (four range flex 27 cm ID) CTs
- MPQ1000 - MPQ1000-G-KIT-PLUS - MPQ1000 Gold Plus Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, hanging strap, voltage lead plunger clips, and 4 MCCV6000-27 (four range flex 27 cm ID) CTs
- MPQ1000 - MPQ1000-P-KIT - MPQ1000 Platinum Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, hanging strap, voltage lead plunger clips, and 3 MCCV6000-37 (four range flex 37 cm ID) CTs
- MPQ1000 - MPQ1000-P-KIT-PLUS - MPQ1000 Platinum Plus Kit: includes analyzer, voltage leads, SD card, USB cable, ethernet cable, universal power adapter, soft-sided carry bag, hanging strap, voltage lead plunger clips, and 4 MCCV6000-37 (four range flex 37 cm ID) CTs
| Model | MPQ1000 |
|---|

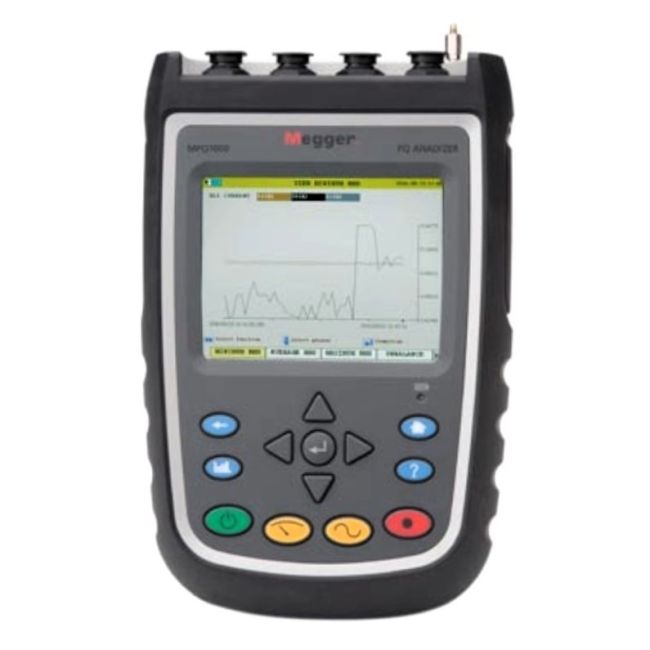

The Megger MPQ1000 Handheld Power Quality Analyzer is a compact 3-phase analyzer offering advanced real-time monitoring of RMS data, harmonics, flicker, waveforms, unbalance, and phase angles. It integrates scope and DVM modes, ensuring precise and efficient analysis across multiple applications. Automatic current clamp recognition eliminates manual setup, while CAT IV safety compliance provides robust operational security.
Equipped with expandable SD memory, a color VGA display, and multiple communication options for seamless data transfer to Megger PQ software, the MPQ1000 ensures versatile usability. Its phase angle stability measurement and DC voltage measurement expand functionality for professional electrical diagnostics.
Testwall can supply the used Megger MPQ1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger MPQ1000.
