Megger MWA330A
| Attribute | Value |
|---|---|
| Transformer Ratio Measurement Range | 1:1 to 10,000:1 |
| Ratio Accuracy | ±0.1% |
| Test Voltage | 10 V AC |
| Excitation Current Measurement Range | 0.1 mA to 600 mA |
| Phase Displacement Measurement Range | 0 to ±180 minutes |
| Phase Displacement Accuracy | ±1 minute |
| Power Supply | 110/230 V AC, 50/60 Hz |
| Display | Large backlit LCD display |
| Operating Temperature Range | -10°C to +50°C (14°F to 122°F) |
| Weight | Approximately 8 kg (17.6 lbs) |
Megger MWA330A Options:
- MWA330A - MWA330A - 3-Phase Winding Analyzer, on board industrial computer with 305 mm (12 in.) touch screen, nominal 120 V, 60 Hz
- MWA330A - MWA330A-47 - 3-Phase Winding Analyzer, on board industrial computer with 305 mm (12 in.) touch screen, nominal 230 V, 50 Hz
| Model | MWA330A |
|---|

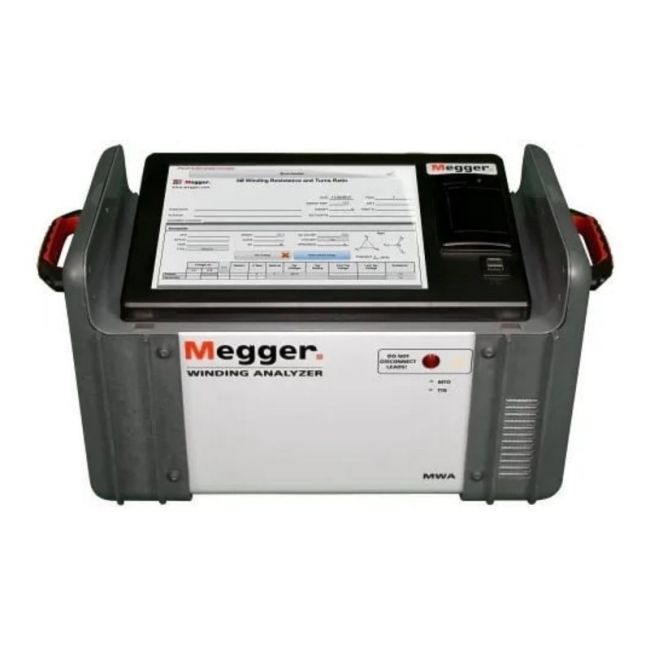

The Megger MWA330A Transformer Winding Analyzer is a 3-phase transformer test system designed for fast and accurate ratio and winding resistance measurements. With a single 3-phase lead-set connection, it performs all essential tests in one unit. Featuring an internal computer, 305 mm (12 in.) color touch-screen, and PowerDB software platform, the MWA330A delivers streamlined operation and advanced functionality for transformer diagnostics.
Its eight-terminal, six-winding resistance measurement capability eliminates the need for inter-connect boxes, reducing downtime and simplifying workflows. The built-in core demagnetization function ensures safe transformer handling and prevents problems related to core saturation after DC testing.
Testwall can supply the used Megger MWA330A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger MWA330A.
