Megger SMRT46D
| Attribute | Value |
|---|---|
| Number of Test Channels | 4 Current, 6 Voltage |
| Current Output per Channel | Up to 30 A continuous (up to 60 A with channels paralleled) |
| Voltage Output per Channel | Up to 300 V AC/DC |
| Power Output | Up to 3600 VA total |
| Frequency Range | 10 Hz to 3000 Hz |
| Phase Angle Range | 0° to 360° |
| Timing Accuracy | ±0.1 ms |
| Binary Inputs/Outputs | 8 Binary Inputs, 4 Binary Outputs |
| Communication Interface | USB, Ethernet (IEC 61850 GOOSE capable) |
| Power Supply Input | 85–265 V AC, 45–65 Hz |
Megger SMRT46D Options:
- SMRT46D - 1 - One (1) Voltage/Current (VIGEN) Module
- SMRT46D - 2 - Two (2) Voltage/Current (VIGEN) Modules
- SMRT46D - 3 - Three (3) Voltage/Current (VIGEN) Modules
- SMRT46D - F - Floating Ungrounded Common Return
- SMRT46D - G - Grounded Common Returns
- SMRT46D - C - CE Mark, Floating Ungrounded Common Return
- SMRT46D - E - CE Mark, Grounded Common Returns
- SMRT46D - 1 (Bluetooth) - With Bluetooth
- SMRT46D - 0 (Bluetooth) - Without Bluetooth
- SMRT46D - A - North American Power Cord (NEMA 5-15 to IEC60320 C13, UL & CSA approved)
- SMRT46D - I - International Power Cord (color coded wires with IEC 60320 C13 connector, CE marked)
- SMRT46D - E (Power Cord) - Continental Europe Power Cord (CEE 7/7 Schuko plug to IEC 60320 C13, CE marked)
- SMRT46D - U - United Kingdom Power Cord (IEC 60320 C13 connector, 13 Amp fuse, BS 1363 / CE Marked)
- SMRT46D - S - Standard Hardware
- SMRT46D - T - Transducer Test Enabled (requires 3 channel configuration)
- SMRT46D - 0 (Software) - Without Internal Enhanced Software Options
- SMRT46D - 1 (Software) - IEC 61850 GOOSE Enabled
- SMRT46D - 2 (Software) - Reserved for Future Use
- SMRT46D - 3 (Software) - RTMS Enhanced Enabled (includes Synchronizer and Frequency test)
- SMRT46D - 4 (Software) - IEC 61850 GOOSE and RTMS Enhanced Enabled
- SMRT46D - 1 (Test Leads) - With Test Leads
- SMRT46D - 0 (Test Leads) - Without Test Leads
| Model | SMRT46D |
|---|

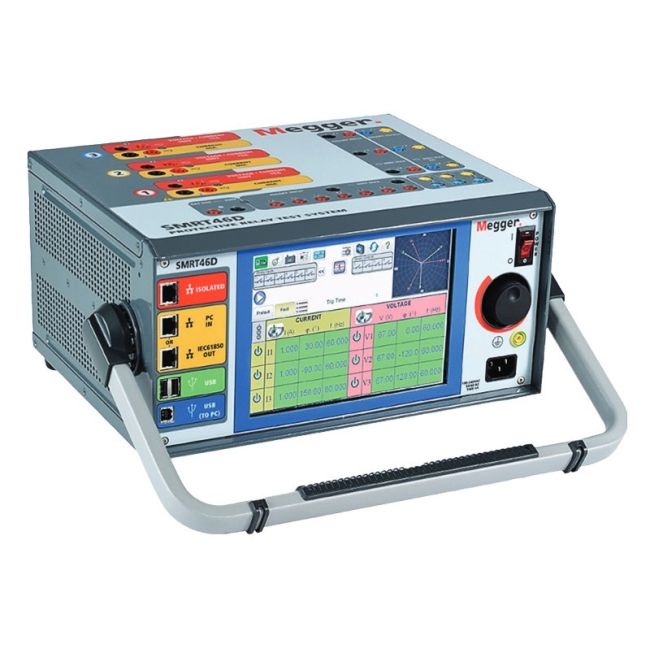

The Megger SMRT46D is a versatile, field-portable relay tester designed for electro-mechanical, solid-state, and microprocessor-based protective relays. It integrates a high-definition TFT LCD touchscreen, providing real-time metered values such as AC/DC volts, amperes, and time. The system supports up to three VIGEN modules for three-phase testing with flexible voltage-current configurations, delivering up to 100 V or 12 A for demanding applications. IEC 61850 and GPS-synchronized end-to-end testing enhance reliability and scope.
Ideal for protection relay testing, fault simulation, and troubleshooting, the SMRT46D operates stand-alone or under PC control with AVTS or RTMS software, ensuring precision in acceptance and maintenance environments.
Testwall can supply the used Megger SMRT46D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger SMRT46D.
