Milmega

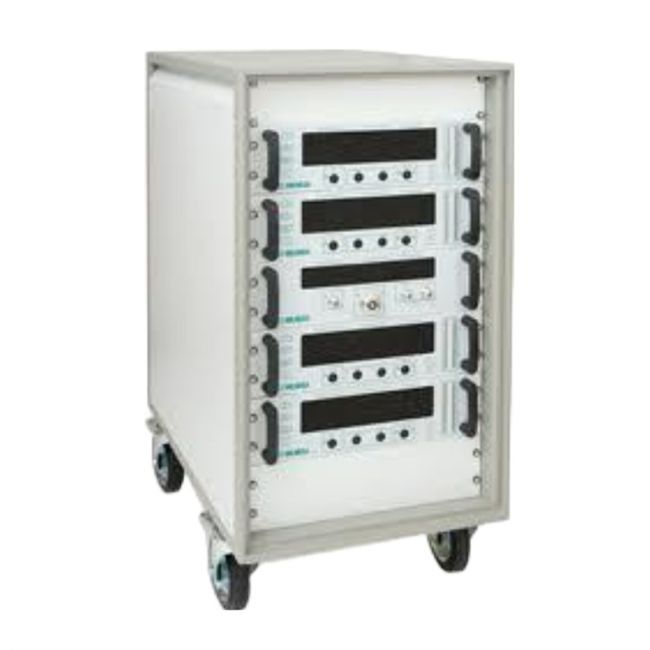

Milmega AS0102-1000
1GHz - 2GHz Amplifier
0.8 GHz – 2.0 GHz Frequency Range
1000 W Output Power (CW)
≥ 50 dB Gain
≤ 10 mW (10 dBm) Input Power for Rated Output
≤ -20 dBc Harmonics
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 GHz – 2.0 GHz |
| Output Power (CW) | 1000 W |
| Gain | ≥ 50 dB |
| Input Power for Rated Output | ≤ 10 mW (10 dBm) |
| Harmonics | ≤ -20 dBc |
| Input VSWR | ≤ 2:1 |
| Output VSWR (Load Tolerance) | Unconditionally stable into any load mismatch |
| Power Supply | Single Phase, 200–240 V AC, 50/60 Hz |
| Cooling Method | Forced Air Cooling |
| Connector Type | N-Type (Input and Output) |
| Model | AS0102-1000 |
|---|
The Milmega AS0102-1000 is a 1.00 GHz - 2.00 GHz , 1.0 kW Amplifier
