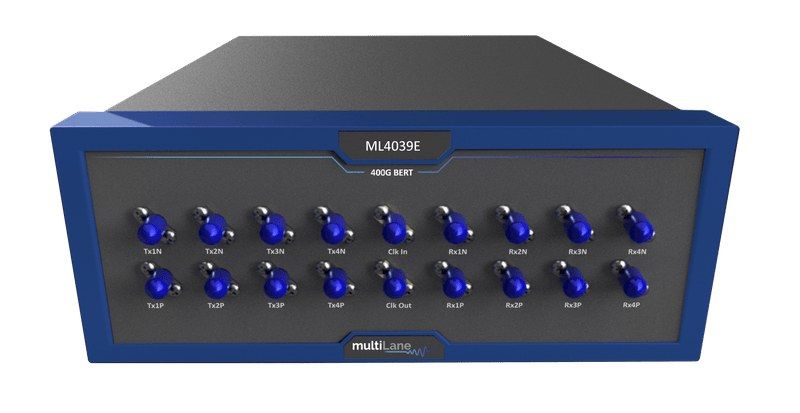

MultiLane ML4039E
| Attribute | Value |
|---|---|
| Channels | 4 |
| Modulation | NRZ and PAM4 |
| Data Rate | 23 to 29 and 46 to 58 GBaud |
| Patterns | PRBS13Q, SSPRQ, PRBS31Q, user-defined |
| Custom Pattern Length | Up to 131 kb |
| Form Factor | Half-width 19-inch 2U benchtop |
The ML4039E is a 4-channel bit error rate tester for 400G measurements, operating as 4-channel PAM4 or NRZ at 23 to 29 and 46 to 58 GBaud. It provides IEEE/OIF patterns (PRBS13Q, SSPRQ, PRBS31Q), a custom TX pattern of up to 131 kb, TX and RX equalisers, and SNR, histogram and BER measurements.
Used for optical transceiver validation and production testing and signal integrity work; controlled with the ThunderBERT GUI, which also supports FEC/SER measurements. Half-width 2U benchtop unit (two fit side by side in a 19-inch rack). Variants include ML4039EN (crosstalk noise injection) and ML4039E-ATE.
Testwall can supply the used MultiLane ML4039E, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the MultiLane ML4039E.
