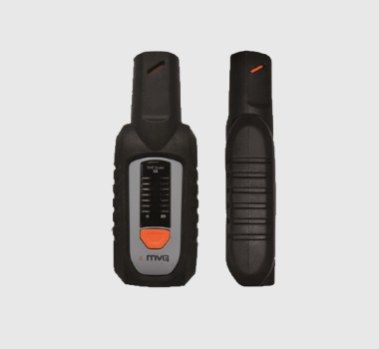

MVG EME Guard XS
| Attribute | Value |
|---|---|
| Frequency Range | 80 MHz to 6 GHz |
| Detection Range | 5 to 350 V/m |
| Sensor | Isotropic tri-axis E-field |
| Isotropy | ±0.5 dB (80-700 MHz), ±0.7 dB (700-2700 MHz), ±0.9 dB (2.7-6 GHz) |
| Alarms | 7-LED colour scale; 2-tone audio alarm |
| Standards | ICNIRP, FCC 96-326, Safety Code 6, 2013/35/EU |
| Measurement Period | 1 s |
| Battery | 2 x 1.5 V N-size alkaline; > 1000 h without alarms |
| Operating Conditions | -10 to +50 °C, up to 85% RH |
| Dimensions / Weight | 132.5 x 48.5 x 28.7 mm; 120 g with batteries |
MVG EME Guard XS Options:
- Factory threshold - Alarm threshold adjusted at MVG factory on request
The MVG EME Guard XS is a compact, wearable personal EMF monitor that warns workers near antennas when field levels exceed reference levels, for example during climbing and site maintenance. Tri-axis isotropic E-field sensors scan continuously from 80 MHz to 6 GHz, detecting 5 to 350 V/m. A 7-LED colour scale and a two-tone audio alarm show the exposure level.
The alarm threshold is set at the MVG factory on request, to suit ICNIRP, FCC 96-326, Safety Code 6 or Directive 2013/35/EU limits. It runs over 1000 hours on two N-size alkaline cells when no alarm is triggered. A 40 GHz version (EME Guard XS 40 GHz, 80 MHz-40 GHz) also exists.
Testwall can supply the used MVG EME Guard XS, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the MVG EME Guard XS.
