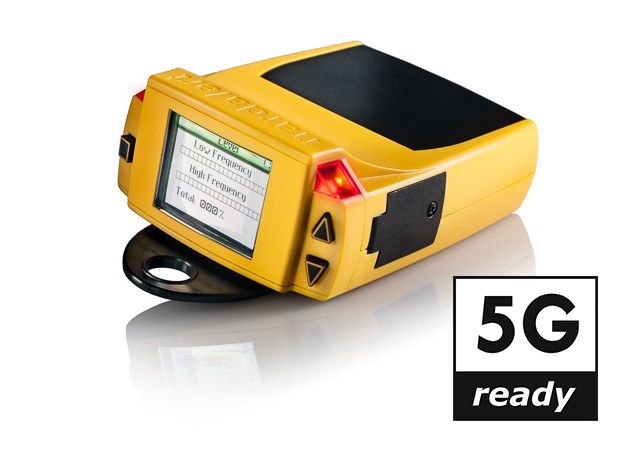

Narda Nardalert S3 (2270/01)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 100 GHz (sensor dependent) |
| Standards | FCC, IEEE C95.1-2019, Safety Code 6, ICNIRP 1998, 2013/35/EU (via sensor) |
| Display | 1.77 in colour TFT LCD, 250 ms refresh |
| Alarms | Alarm 1 default 50% (10-100%); Alarm 2 default 200%; LCD, LED, audible, vibration |
| Overload | 3000% of standard (CW); 32 dB above standard (peak) |
| Data Logger | 62,000 events (with option key 2270/90.01) |
| Battery | 1 x RCR123A Li-ion, USB rechargeable; 25 h operation |
| Interfaces | USB; optical RS-232 |
| Calibration Interval | 4 years mainframe, 2 years sensors |
| Dimensions / Weight | 117 x 83 x 32 mm; 230 g (with sensor) |
Narda Nardalert S3 (2270/01) Options:
- 2271/01 - Sensor module, FCC
- 2271/12 - Sensor module, IEEE C95.1-2019 (3 MHz-100 GHz)
- 2271/22 - Sensor module, Safety Code 6
- 2271/31 - Sensor module, ICNIRP
- 2270/90.01 - NS3 option key: data logger, alarm changes, optical interface
- 2270/92.01 - Weatherproof pouch
The Narda Nardalert S3 2270/01 is the mainframe of a body-worn personal RF radiation monitor. Paired with a plug-in sensor module, it evaluates exposure from 100 kHz to 100 GHz against a selected human safety standard. A colour LCD on top of the case can be read at a glance and shows how the exposure divides between components above and below 1 GHz.
Sensor modules are available for FCC, IEEE C95.1-2019, Safety Code 6 and ICNIRP; the mainframe does not operate without one. The NS3 option key adds data logging, alarm-level changes, the fibre-optic interface and history display.
Testwall can supply the used Narda Nardalert S3 (2270/01), fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Narda Nardalert S3 (2270/01).
