National Instruments

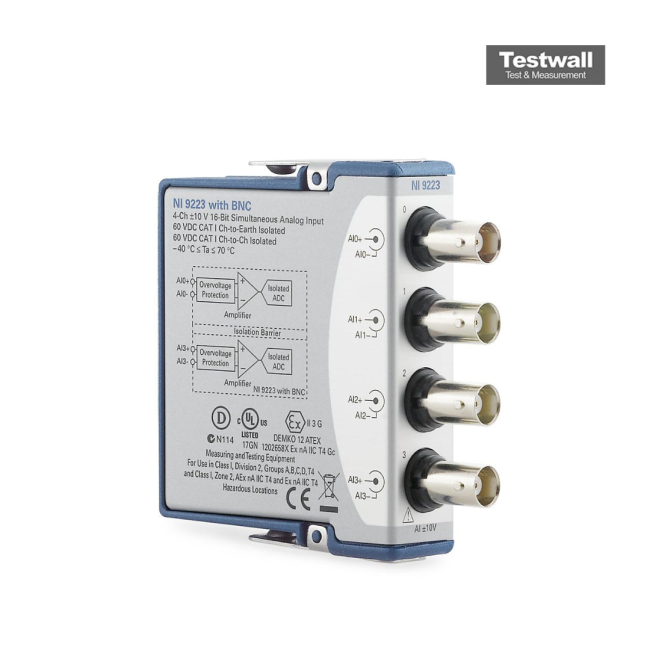

National Instruments NI-9223
4-channel, 1MS/s/ch C-series Analog Input Module
4 simultaneous analog input channels Number of Channels
1 MS/s per channel (4 MS/s aggregate) Sample Rate
16-bit Resolution
±10 V Input Voltage Range
1 MΩ Input Impedance
| Attribute | Value |
|---|---|
| Number of Channels | 4 simultaneous analog input channels |
| Sample Rate | 1 MS/s per channel (4 MS/s aggregate) |
| Resolution | 16-bit |
| Input Voltage Range | ±10 V |
| Input Impedance | 1 MΩ |
| Overvoltage Protection | ±30 V |
| Bus Interface | CompactDAQ / CompactRIO (C Series) |
| Operating Temperature Range | -40°C to 70°C |
| Simultaneous Sampling | Yes – all 4 channels sampled simultaneously |
| Connectivity | BNC connectors (4 BNC inputs) |
| Model | NI-9223 |
|---|
The National Instruments NI-9223 is a 4-channel C-series analog input module delivering 1 MS/s per channel for high-speed and precise analog signal acquisition in demanding test systems.
Designed for simultaneous sampling, this module is perfect for complex applications needing reliable and accurate data capture within modular DAQ frameworks.
Testwall can supply the used National Instruments NI-9223, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments NI-9223.
