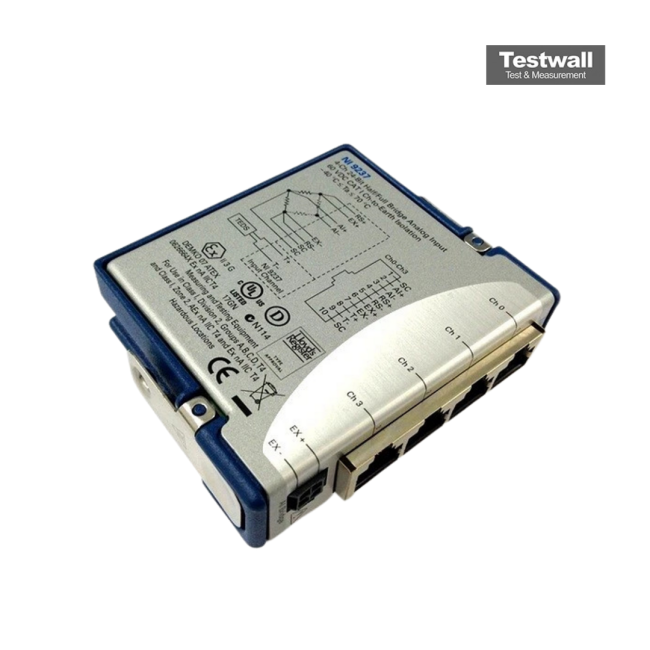

National Instruments NI-9237
| Attribute | Value |
|---|---|
| Number of Channels | 4 differential channels |
| ADC Resolution | 24-bit |
| Maximum Sample Rate | 50 kS/s aggregate (12.5 kS/s per channel) |
| Input Voltage Range | ±25 mV, ±50 mV, ±100 mV, ±200 mV (with bridge excitation) |
| Bridge Excitation Voltage | 0.625 V to 10 V (software selectable) |
| Bridge Excitation Current (Max) | 32 mA per channel |
| Supported Bridge Configurations | Full bridge, half bridge, quarter bridge |
| Bus Interface | NI CompactDAQ / CompactRIO (C Series module) |
| Operating Temperature Range | -40 °C to 70 °C |
| Isolation Voltage | 60 VDC, CAT I (channel-to-chassis isolation) |
| Model | NI-9237 |
|---|
The National Instruments NI-9237 is a high-precision data acquisition module featuring 4 simultaneous analog inputs with a sensitivity of 25 mV/V, 24-bit resolution, and a sampling rate of 50 kS/s per channel. This device ensures accurate, high-speed measurements ideal for strain, load, and force sensing applications.
Designed for industrial and laboratory use, the NI-9237 supports robust data acquisition with excellent noise immunity and compatibility with NI CompactDAQ systems, making it suitable for advanced structural and mechanical testing.
Testwall can supply the used National Instruments NI-9237, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments NI-9237.
