National Instruments PCI-6552
| Attribute | Value |
|---|---|
| Number of Channels | 20 digital I/O channels |
| Maximum Clock Rate | 100 MHz |
| Logic Levels | 1.8 V, 2.5 V, 3.3 V, 5 V (TTL/LVTTL compatible) |
| Pattern Memory Depth | 32 MB (256 Mbit) onboard memory |
| Bus Interface | PCI (32-bit, 33 MHz) |
| Drive Current | Up to 24 mA per channel |
| Timing Resolution | 10 ns |
| Trigger Types | Digital edge, pattern, and software triggering |
| Operating Temperature | 0 °C to 55 °C |
| Connector Type | 68-pin VHDCI connector |
| Model | PCI-6552 |
|---|

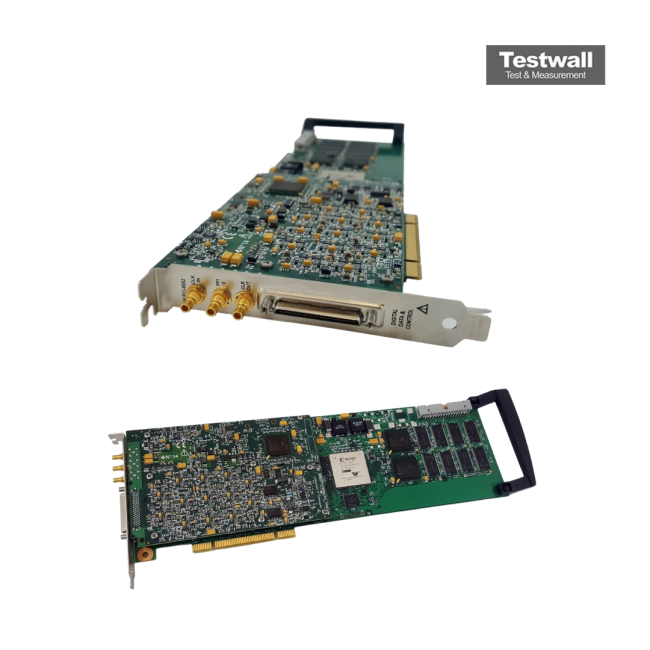

The National Instruments PCI-6552 100MHz 20ch Digital Waveform Generator/Analyzer delivers 100 MHz operation across 20 digital channels, supporting precise generation and acquisition of high-speed digital waveforms. It offers programmable voltage levels, advanced triggering, and synchronization capabilities, ideal for demanding validation and test applications.
Designed for engineers working with complex digital systems, it provides flexible timing control, pattern sequencing, and reliable performance for both R&D and production environments.
Testwall can supply the used National Instruments PCI-6552 100MHz 20ch Digital Waveform Generator/Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PCI-6552 100MHz 20ch Digital Waveform Generator/Analyzer.
