National Instruments PXI-2564
| Attribute | Value |
|---|---|
| Number of Channels | 8 |
| Switch Topology | SPDT (Single-Pole Double-Throw) |
| Maximum Switching Voltage | 400 V DC, 400 V AC (peak) |
| Maximum Switching Current | 5 A |
| Maximum Switching Power | 50 W |
| Relay Type | Electromechanical SPDT Relays |
| Minimum Mechanical Life (Operations) | 10,000,000 cycles |
| Connector Type | DSUB 37-pin Male |
| Form Factor | PXI (3U, 1-Slot) |
| Operating Temperature | 0 °C to 55 °C |
| Model | PXI-2564 |
|---|

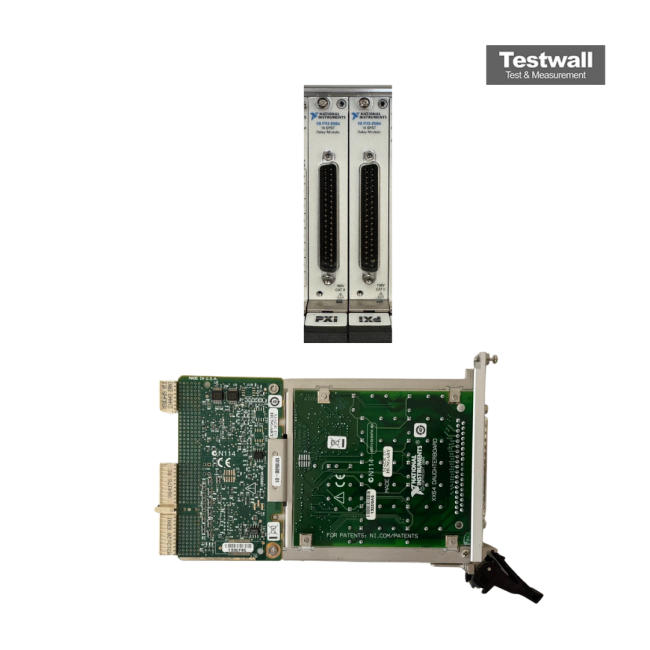

The National Instruments PXI-2564 PXI Relay Module is a versatile PXI relay module featuring 16 SPST and 8 DPST relays, capable of handling up to 5A and 150V. Designed for precise signal routing, it ensures reliable operation in automated test systems and switching applications. With its high-density configuration, it supports flexible integration into complex PXI setups, providing optimal performance and durability.
Ideal for high-power switching, the National Instruments PXI-2564 PXI Relay Module delivers efficient signal control for both AC and DC applications. Its compact PXI form factor allows seamless deployment in space-constrained test environments.
Testwall can supply the used National Instruments PXI-2564 PXI Relay Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-2564 PXI Relay Module.
