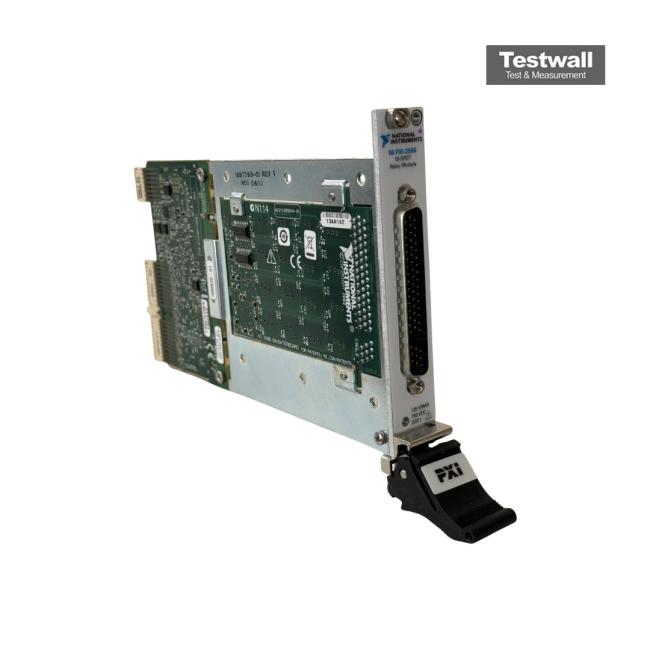

National Instruments PXI-2566
| Attribute | Value |
|---|---|
| Number of Channels | 16 |
| Switch Topology | SPST (Single-Pole Single-Throw) |
| Maximum Switching Voltage | 200 VDC / 150 VAC RMS |
| Maximum Switching Current | 1 A |
| Maximum Switching Power | 50 W |
| Relay Type | Electromechanical Reed Relay |
| Minimum Expected Relay Lifetime | 100,000,000 operations (resistive load) |
| Form Factor | PXI |
| PXI Slot Requirement | 1 PXI Slot |
| Operating Temperature | 0 °C to 55 °C |
| Model | PXI-2566 |
|---|
The National Instruments PXI-2566 is a 16-channel Single-Pole Double-Throw (SPDT) relay module offering high-density switching capabilities in PXI systems. It provides fast actuation, low contact resistance, and reliable operation, making it ideal for signal routing and automated testing environments.
Engineered for precision and durability, the PXI-2566 supports versatile switching configurations for complex testing setups, ensuring efficient control over multiple channels in a compact design.
Testwall can supply the used National Instruments PXI-2566 16-channel SPDT Relay Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-2566 16-channel SPDT Relay Module.
