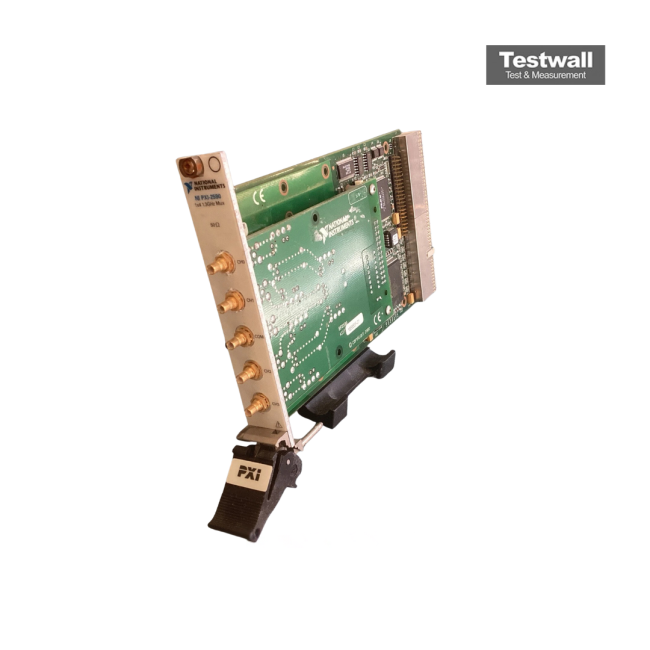

National Instruments PXI-2590
| Attribute | Value |
|---|---|
| Number of Channels | 4 |
| Topology | 4x1 Multiplexer |
| Frequency Range | DC to 26.5 GHz |
| Insertion Loss (at 26.5 GHz) | 3.5 dB maximum |
| Isolation (at 26.5 GHz) | 60 dB minimum |
| VSWR (at 26.5 GHz) | 2.0:1 maximum |
| Connector Type | SMA (female) |
| Maximum Input Power | 1 W (30 dBm) |
| Operating Temperature Range | 0 °C to 55 °C |
| Form Factor | 1-Slot 3U PXI Module |
| Model | PXI-2590 |
|---|
The National Instruments PXI-2590 is a 1.3 GHz, 4x1, 50 Ω multiplexer module designed for high-frequency switching applications. It features a nominal 50 Ω characteristic impedance, insertion loss of less than 1.5 dB at 1.3 GHz, and a VSWR of under 1.5 at the same frequency. With channel-to-channel isolation exceeding 50 dB, a propagation delay under 3 ns, and a rise time below 300 ps, this module delivers exceptional signal integrity and precision performance.
Ideal for RF signal routing, automated test equipment, and communication systems, the PXI-2590 ensures minimal signal degradation and reliable high-speed performance, making it suitable for advanced laboratory and production environments.
Testwall can supply the used National Instruments PXI-2590 1.3 GHz 4x1 50ohm Multiplexer Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-2590 1.3 GHz 4x1 50ohm Multiplexer Module.
