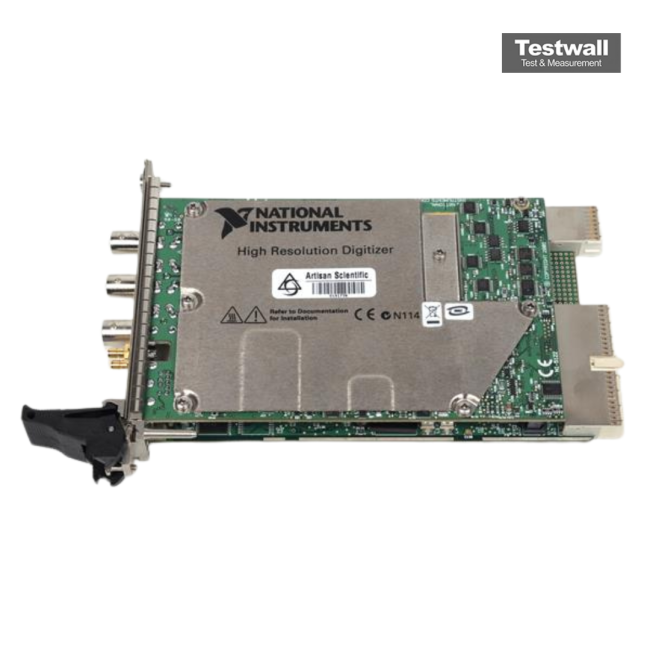

National Instruments PXI-5122
| Attribute | Value |
|---|---|
| Number of Channels | 2 simultaneous analog input channels |
| Resolution | 14-bit |
| Maximum Sample Rate | 100 MS/s per channel |
| Input Impedance | 50 Ω or 1 MΩ (selectable) |
| Input Voltage Range | ±0.5 V to ±10 V (with 1 MΩ impedance); ±0.5 V to ±5 V (with 50 Ω impedance) |
| Onboard Memory | 256 MB per channel |
| Bandwidth | 100 MHz |
| Coupling | AC or DC (selectable) |
| Trigger Types | Immediate, digital edge, analog edge, analog window, software |
| Bus Interface | PXI (3U, 1-slot) |
| Model | PXI-5122 |
|---|
The National Instruments PXI-5122 100 MS/s 14-bit Oscilloscope/Digitizer offers high-resolution waveform capture with a sampling rate of 100 MS/s and 14-bit vertical resolution, ensuring precise signal analysis. It supports dual-channel operation and integrates seamlessly into PXI systems for versatile measurement applications.
Ideal for transient signal acquisition, research, and automated testing, it delivers reliable performance across a wide input frequency range with advanced triggering options.
Testwall can supply the used National Instruments PXI-5122 100 MS/s 14-bit Oscilloscope/Digitizer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-5122 100 MS/s 14-bit Oscilloscope/Digitizer.
