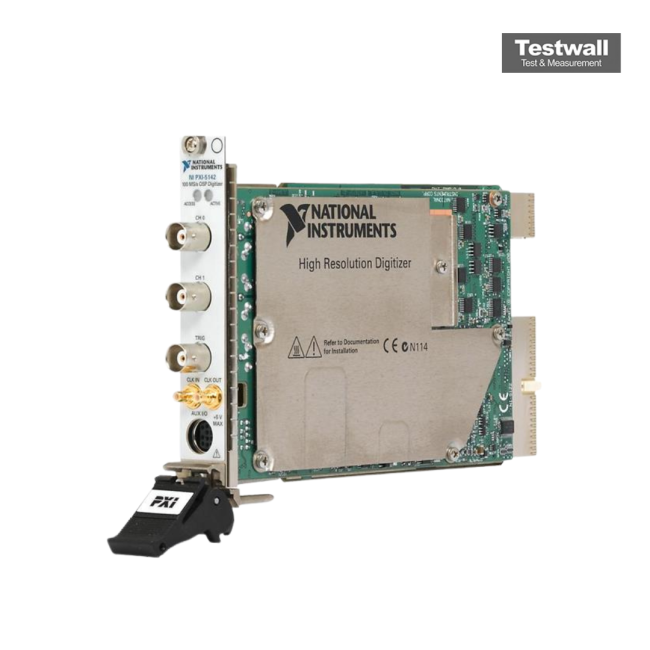

National Instruments PXI-5142
| Attribute | Value |
|---|---|
| Number of Channels | 2 simultaneously sampled input channels |
| Resolution | 14-bit |
| Maximum Sample Rate | 100 MS/s per channel |
| Input Impedance | 50 Ω or 1 MΩ (software selectable) |
| Input Voltage Range | ±0.5 V to ±5 V (multiple ranges, software selectable) |
| Onboard Memory | 256 MB per channel |
| Bandwidth | 150 MHz |
| Bus Interface | PXI (32-bit, 33 MHz) |
| Trigger Types | Immediate, digital, analog (edge and hysteresis), software |
| Operating Temperature | 0 °C to 55 °C |
| Model | PXI-5142 |
|---|
The National Instruments PXI-5142 100MHz 100MS/s 14-bit Oscilloscope Module delivers precise signal acquisition with a 100MHz bandwidth, 100MS/s sampling rate, and 14-bit resolution, ensuring exceptional waveform detail. This PXI oscilloscope module integrates seamlessly into modular test systems, offering advanced triggering, deep memory, and high data throughput for demanding measurement applications.
Ideal for high-speed signal analysis, the PXI-5142 supports various waveform analysis functions and real-time data streaming. Its modular design makes it suitable for automated test setups and complex system integrations.
Testwall can supply the used National Instruments PXI-5142 100MHz 100MS/s 14-bit Oscilloscope Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the National Instruments PXI-5142 100MHz 100MS/s 14-bit Oscilloscope Module.
