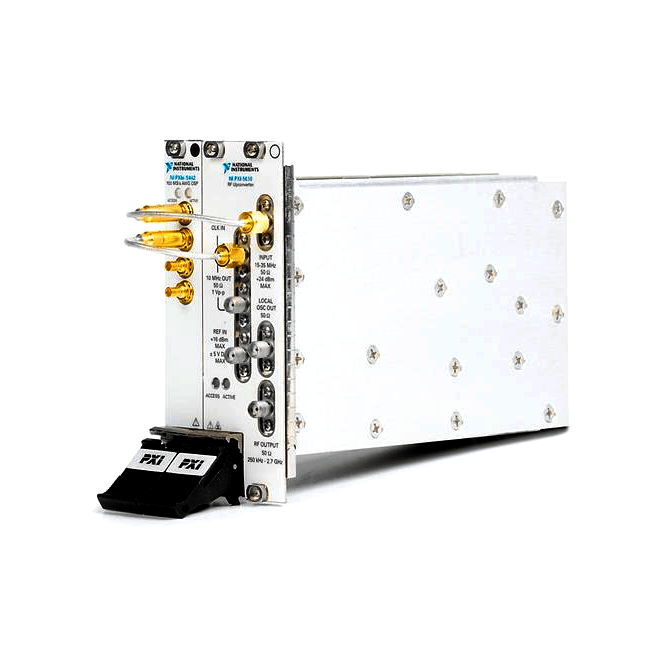

Vector Signal Generator:
- 250 kHz to 2.7 GHz frequency range
- -145 dBm to +10 dBm amplitude range
- 20 MHz instantaneous bandwidth
- 10 MHz oven-controlled crystal oscillator (OCXO) timebase with ±20 ppb frequency stability, ±50 ppb frequency accuracy
- 132 dB compression-to-noise dynamic range
- -120 dBm/Hz typical noise density (0 dBm output level, 15 °C to 35 °C)
- ≥ 512 MB of AWG module onboard waveform memory
- NI-RFSG instrument driver software transparently operates both modules as a single unit
- Three-slot wide PXI/3U CompactPCI form factor
More Information

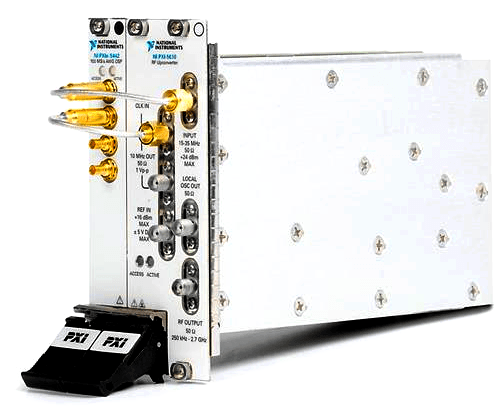

| Model | PXIe-5672 |
|---|
