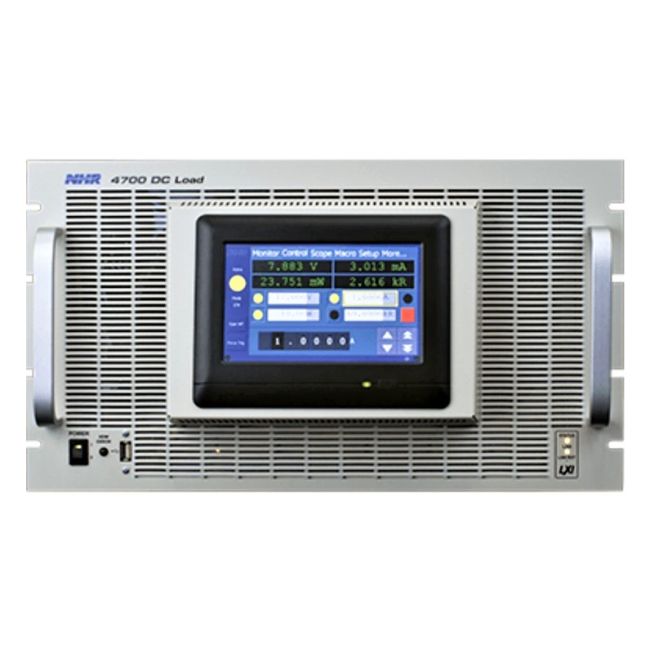

NH Research 4700-30
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 30 V |
| Output Current Range | 0 – 100 A |
| Output Power | 3000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Voltage Regulation (Load) | 0.05% + 5 mV |
| Current Regulation (Load) | 0.1% + 10 mA |
| Output Ripple & Noise (rms) | 10 mV rms |
| Interface / Control | GPIB (IEEE-488), RS-232 |
| Operating Temperature | 0°C to 50°C |
NH Research 4700-30 Options:
- 4700-30 - -TP - Touch panel display option (add -TP after model number, e.g. 4700-1-TP)
- 4700-30 - DC Load Sequencer - Optional software tool: DC Load Sequencer
- 4700-30 - emPower™ Test Executive - Optional software tool: emPower™ Test Executive
- 4700-30 - Enerchron™ Test Management Software - Optional software tool: Enerchron™ Test Management Software
| Model | 4700-30 |
|---|
The NH Research 4700-30 DC Electronic Load is built for high-power, high-current testing, eliminating the need for external instruments. It supports testing of DC supplies, telecom rectifiers, fuel cells, and batteries, while ensuring accurate measurement of UUT performance during turn-on and turn-off.
Featuring protection against over-voltage, over-current, reverse-voltage, and overheating, the 4700-30 provides safe, efficient operation. Its 100-step macrorecording enables precise recreation of dynamic multi-mode load profiles with synchronous, power-balanced modular control.
Testwall can supply the used NH Research 4700-30, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 4700-30.
