NH Research 9200-4904
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 60 V |
| Output Current Range | 0 – 100 A |
| Output Power | Up to 4 kW |
| Input Voltage | 208/240 VAC, Single Phase |
| Input Frequency | 47 – 63 Hz |
| Efficiency | Up to 90% |
| Communication Interface | IEEE-488 (GPIB) / RS-232 |
| Operating Temperature | 0°C to 40°C |
| Cooling Method | Forced Air Cooling |
| Form Factor | Rack Mountable, 3U |
NH Research 9200-4904 Options:
- 9200-4904 - 9200-4904-36 - 3 Test Channels @ 12kW each, 36kW Maximum Test Power, 40V/1800A, One Cabinet, 28"W x 31"D x 72"H
- 9200-4912 - 9200-4912-36-2 - 6 Test Channels @ 12kW each, 72kW Maximum Test Power, Model 4912 Power Module, 120V/1200A, Two Cabinets, 56"W x 31"D x 72"H
- 9200-4924 - 9200-4924-36-3 - 9 Test Channels @ 12kW each, 108kW Maximum Test Power, Model 4924 Power Module, 240V/700A, Three Cabinets, 84"W x 31"D x 72"H
- 9200-4960 - 9200-4960-36-3 - 9 Test Channels @ 12kW each, 108kW Maximum Test Power, Model 4960 Power Module, 600V/360A, Three Cabinets, 84"W x 31"D x 72"H
- 9200-4960 - 9200-4960-36-4 - 12 Test Channels @ 12kW each, 144kW Maximum Test Power, Model 4960 Power Module, 600V/480A, Four Cabinets, 112"W x 31"D x 72"H
| Model | 9200-4904 |
|---|

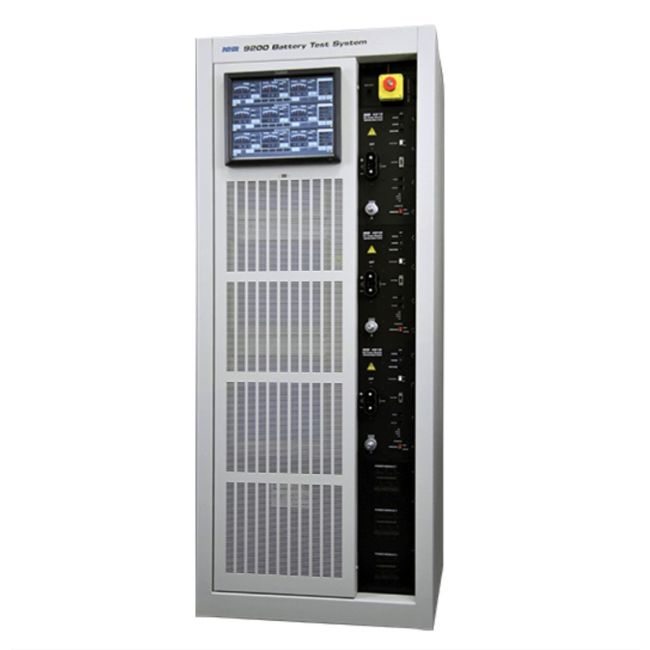

The NH Research 9200-4904 is an advanced Battery Module/Pack Test System offering automated characterization, power cycling, and life-cycle testing. It features tester-per-channel architecture, expandable power from 12 kW to 252 kW, and supports charge, discharge, standby, and battery emulation modes. With microsecond transition times, programmable safety limits, and LAN communication, it provides high precision and control across voltage, current, power, and resistance parameters.
This versatile system delivers custom waveform generation, synchronous control for up to 12 channels, and efficient power recovery with 87% discharge power return to mains. Its built-in digital measurements, macro test profiles, and touch-panel interface make it ideal for advanced battery development, testing, and validation applications.
Testwall can supply the used NH Research 9200-4904, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9200-4904.
