NH Research 9300
| Attribute | Value |
|---|---|
| Output Power | Up to 18 kW |
| Output Voltage Range | 0 – 600 V DC |
| Output Current Range | 0 – 30 A |
| Operating Modes | Constant Voltage (CV), Constant Current (CC), Constant Power (CP) |
| Input Voltage | 208/480 V AC, 3-Phase |
| Communication Interfaces | GPIB, RS-232, Ethernet (LAN), USB |
| Regenerative Capability | Yes – returns energy back to the AC grid |
| Efficiency | Up to 90% |
| Form Factor | Rack-mountable, 3U chassis |
| Applications | Battery testing, fuel cell testing, EV/HEV component testing, power electronics testing |
NH Research 9300 Options:
- 9300 - 9300-100 - 100kW Rating, Max Current 333A @ 600V, ±167A @ 1200V
- 9300 - 9300-200 - 200kW Rating, Max Current 666A @ 600V, ±334A @ 1200V
- 9300 - 9300-300 - 300kW Rating, Max Current 999A @ 600V, ±501A @ 1200V
- 9300 - 9300-400 - 400kW Rating, Max Current 1332A @ 600V, ±668A @ 1200V
- 9300 - 9300-500 - 500kW Rating, Max Current 1665A @ 600V, ±835A @ 1200V
- 9300 - 9300-600 - 600kW Rating, Max Current 1998A @ 600V, ±1002A @ 1200V
- 9300 - 9300-700 - 700kW Rating, Max Current 2331A @ 600V, ±1169A @ 1200V
- 9300 - 9300-800 - 800kW Rating, Max Current 2664A @ 600V, ±1336A @ 1200V
- 9300 - 9300-900 - 900kW Rating, Max Current 2997A @ 600V, ±1503A @ 1200V
- 9300 - 9300-1000 - 1000kW Rating, Max Current 3330A @ 600V, ±1670A @ 1200V
- 9300 - 9300-1100 - 1100kW Rating, Max Current 3663A @ 600V, ±1837A @ 1200V
- 9300 - 9300-1200 - 1200kW Rating, Max Current 3996A @ 600V, ±2001A @ 1200V
| Model | 9300 |
|---|

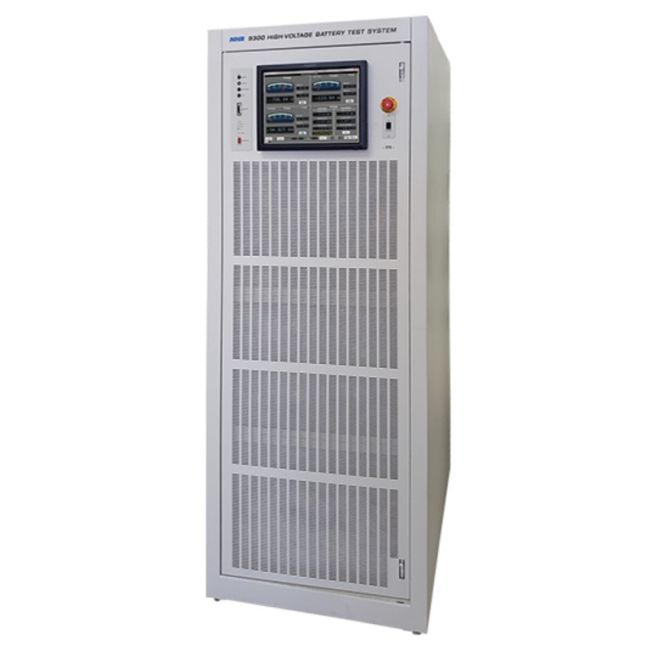

The NH Research 9300 Battery Charge / Discharge Cycler Test System is a high-speed, bidirectional DC source with full programmability. It supports constant power, voltage, and current regulation modes, making it suitable for testing batteries, fuel cells, ultra-capacitors, and energy storage devices across industries such as automotive, aviation, marine, grid storage, and laboratories.
With a user-friendly Touch-Panel interface, engineers can easily create, monitor, and report test profiles without programming. It also offers compatibility with Enerchron® Test Executive for long-term testing and advanced data analysis, or integration via LabVIEW and IVI-compliant software for custom system control.
Testwall can supply the used NH Research 9300, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the NH Research 9300.
